EHF-120-01-F-D-01

Active

Samtec Inc.

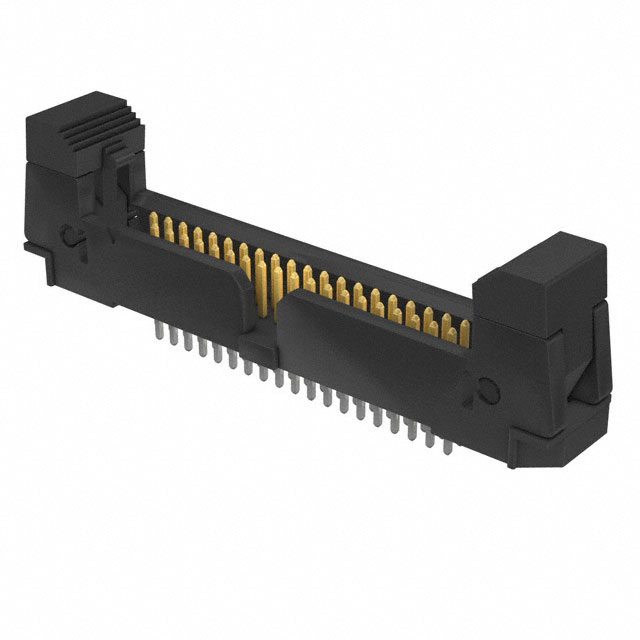

CONN EJECTOR HEADER HDR 40 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

EHF-120-01-F-D-01

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 40 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-120-01-F-D-01

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.107 "
Contact Length - Post	2.71 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	39
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.35 in
Overall Contact Length	8.89 mm
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-120 Series

Part	Style	Fastening Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Type	Insulation Color	Contact Shape	Features	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Rows	Contact Material	Connector Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length
Samtec Inc. EHF-120-01-FM-D-RA	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Keying Slot	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header	All	0.09 "	2.29 mm	Through Hole Right Angle	3 µin	0.076 µm
Samtec Inc. EHF-120-01-H-D-SM-LC	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Gold	Male Pin	Black	Square	Board Lock Keying Slot	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header	All			Surface Mount	30 Áin	0.76 Ám	8.25 mm	0.325 in	3 µin	0.076 µm
Samtec Inc. EHF-120-01-L-D-SM-LC-07	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Board Lock Keying Slot	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header				Surface Mount	10 çin	0.25 çm	8.25 mm	0.325 in			39
Samtec Inc. EHF-120-01-F-D-SM-01	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Keying Slot	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header				Surface Mount	3 µin	0.076 µm	8.25 mm	0.325 in			39
Samtec Inc. EHF-120-01-S-D-SM	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Keying Slot	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header	All			Surface Mount	30 Áin	0.76 Ám	8.25 mm	0.325 in
Samtec Inc. EHF-120-01-S-D-SM-K-TR	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Keying Slot Pick and Place	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header	All			Surface Mount	30 Áin	0.76 Ám	8.25 mm	0.325 in
Samtec Inc. EHF-120-01-S-D-SM-LC	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Board Lock Keying Slot	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header	All			Surface Mount	30 Áin	0.76 Ám	8.25 mm	0.325 in
Samtec Inc. EHF-120-01-F-D-01	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Keying Slot	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header		0.107 "	2.71 mm	Through Hole	3 µin	0.076 µm	8.25 mm	0.325 in			39	0.35 in	8.89 mm
Samtec Inc. EHF-120-01-F-D-SM-LC-12	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Board Lock Keying Slot	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header				Surface Mount	3 µin	0.076 µm	8.25 mm	0.325 in			39
Samtec Inc. EHF-120-01-LM-D-SM-K-TR	Board to Cable/Wire	Latch Lock/Eject Hooks	1.75 A	0.05 in	1.27 mm	Tin	Male Pin	Black	Square	Keying Slot Pick and Place	40	0.05 in	1.27 mm	Gold	3.05 mm	0.12 in	Shrouded - 4 Wall	-55 °C	125 °C	Solder	2	Phosphor Bronze	Header	All			Surface Mount	10 çin	0.25 çm	8.25 mm	0.325 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	14	$ 7.30

Description

General part information

EHF-120 Series

Connector Header Through Hole 40 position 0.050" (1.27mm)
