SDR0906-390KL

Active

Bourns Inc.

INDUCTOR,FERRITE,39UH,10+% TOL,10-% TOL,4149-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

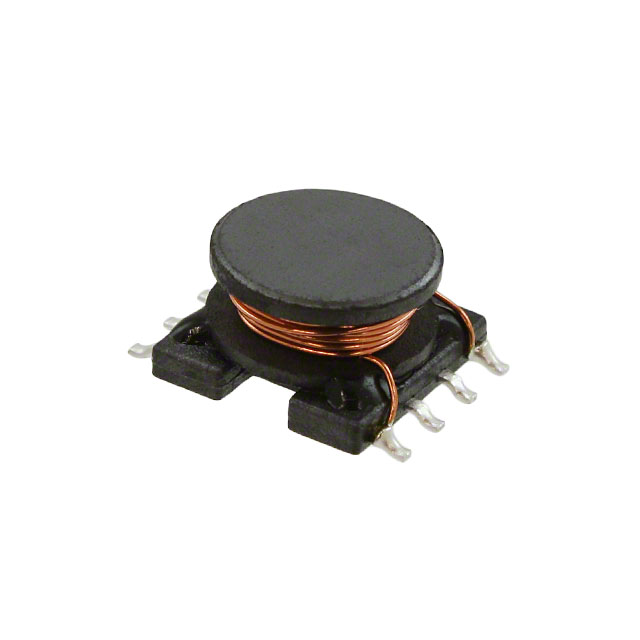

SDR0906-390KL

Active

Bourns Inc.

INDUCTOR,FERRITE,39UH,10+% TOL,10-% TOL,4149-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDR0906-390KL

Current - Saturation (Isat)	1.6 A
Current Rating (Amps)	1.15 A
DC Resistance (DCR) [Max]	190 mOhm
Frequency - Self Resonant	13 MHz
Height - Seated (Max) [Max]	6.3 mm
Height - Seated (Max) [Max]	0.248 in
Inductance	39 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	25, 2.52 MHz
Shielding	Unshielded
Size / Dimension [x]	0.492 in
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	0.413 in
Size / Dimension [y]	10.5 mm
Tolerance	10 %
Type	Wirewound, Drum Core

SDR0906 Series

Part	Tolerance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Inductance	Package / Case	Q @ Freq	Current - Saturation (Isat)	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Shielding	Material - Core	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Bourns Inc. SDR0906-102KL	10 %	3.5 Ohm	0.22 A	6.3 mm	0.248 in	Drum Core Wirewound	1 mH	Nonstandard	60 252 kHz	350 mA	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	2 MHz	125 °C	-40 °C
Bourns Inc. SDR0906-100ML	20 %	90 mOhm	2.1 A	6.3 mm	0.248 in	Drum Core Wirewound	10 µH	Nonstandard	2.52 MHz 35	3.2 A	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	25 MHz	125 °C	-40 °C
Bourns Inc. SDR0906-330KL	10 %		1.25 A	6.3 mm	0.248 in	Drum Core Wirewound	33 µH	Nonstandard	2.52 MHz 35	2 A	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	14 MHz	125 °C	-40 °C	180 mOhm
Bourns Inc. SDR0906-331KL	10 %	1.27 Ohm	0.5 A	6.3 mm	0.248 in	Drum Core Wirewound	330 µH	Nonstandard	15 796 kHz	650 mA	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	5 MHz	125 °C	-40 °C
Bourns Inc. SDR0906-101KL	10 %		900 mA	6.3 mm	0.248 in	Drum Core Wirewound	100 µH	Nonstandard	15 796 kHz	1.1 A	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	8 MHz	125 °C	-40 °C	390 mOhm
Bourns Inc. SDR0906-152KB	10 %		0.18 A	6.3 mm	0.248 in	Drum Core Wirewound	1.5 mH	Nonstandard	70 252 kHz	260 mA	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	2 MHz	125 °C	-40 °C	5 Ohm
Bourns Inc. SDR0906-100KL	10 %	90 mOhm	2.1 A	6.3 mm	0.248 in	Drum Core Wirewound	10 µH	Nonstandard	2.52 MHz 35	3.2 A	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	25 MHz	125 °C	-40 °C
Bourns Inc. SDR0906-822KL	10 %	28 Ohm	50 mA	6.3 mm	0.248 in	Drum Core Wirewound	8.2 mH	Nonstandard	100 252 kHz	120 mA	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	1 MHz	125 °C	-40 °C
Bourns Inc. SDR0906-470KL	10 %	230 mOhm	1.1 A	6.3 mm	0.248 in	Drum Core Wirewound	47 µH	Nonstandard	2.52 MHz 25		Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	12 MHz	125 °C	-40 °C
Bourns Inc. SDR0906-390KL	10 %	190 mOhm	1.15 A	6.3 mm	0.248 in	Drum Core Wirewound	39 µH	Nonstandard	2.52 MHz 25	1.6 A	Surface Mount	0.413 in	10.5 mm	0.492 in	12.5 mm	Unshielded	Ferrite	13 MHz	125 °C	-40 °C
