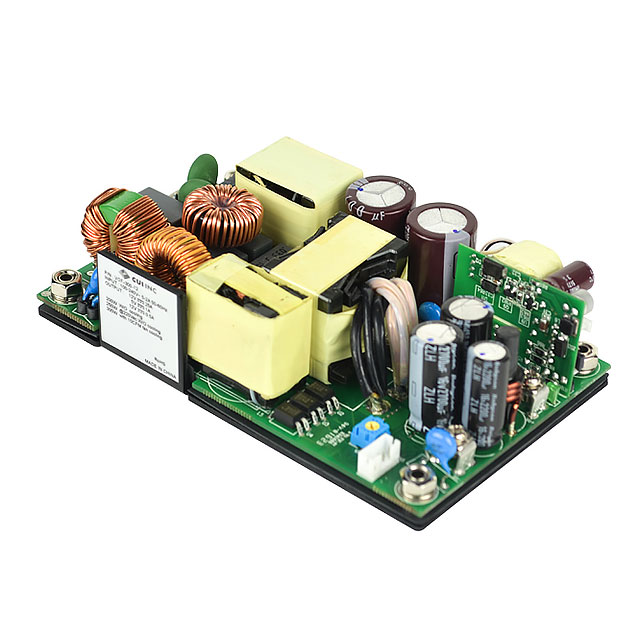

Specification	VOF-300-24

Applications	ITE (Commercial)
Approval Agency	SIQ, CB Scheme, IEC, UL, TUV, EN
Current - Output 1	8.33 A
Efficiency	93.5 %
Features	PFC, Remote On/Off, Standby Output, Adjustable Output, Remote Sense, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	300 W, 200 W
Size / Dimension Height	1.38 in
Size / Dimension Length	5 in
Size / Dimension Width	3 in
Standard Number	61000-6-2, 61000-6-1, 60950-1
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	3 kV
Voltage - Output 1	24 V

VOF-300 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output 1	Number of Outputs	Power (Watts)	Voltage - Isolation	Type	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Mounting Type	Voltage - Output 1	Standard Number	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Applications	Efficiency	Approval Agency	Features
CUI Inc. VOF-300-48	80 °C	-40 °C	4.17 A	1	200 W 300 W	3 kV	Open Frame	90 V	264 V	Chassis Mount	48 V	60950-1 61000-6-1 61000-6-2	5 in	1.38 in	3 in	ITE (Commercial)	94 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
CUI Inc. VOF-300-48-CNF	80 °C	-40 °C	4.17 A	1	200 W 300 W	3 kV	Enclosed	90 V	264 V	Chassis Mount	48 V	60950-1 61000-6-1 61000-6-2	5.35 in	1.59 in	3.46 in	ITE (Commercial)	94 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
CUI Inc. VOF-300-24	80 °C	-40 °C	8.33 A	1	200 W 300 W	3 kV	Open Frame	90 V	264 V	Chassis Mount	24 V	60950-1 61000-6-1 61000-6-2	5 in	1.38 in	3 in	ITE (Commercial)	93.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
CUI Inc. VOF-300-24-CNF	80 °C	-40 °C	8.33 A	1	200 W 300 W	3 kV	Enclosed	90 V	264 V	Chassis Mount	24 V	60950-1 61000-6-1 61000-6-2	5.35 in	1.59 in	3.46 in	ITE (Commercial)	93.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
CUI Inc. VOF-300-36-CNF	80 °C	-40 °C	5.56 A	1	200 W 300 W	3 kV	Enclosed	90 V	264 V	Chassis Mount	36 V	60950-1 61000-6-1 61000-6-2	5.35 in	1.59 in	3.46 in	ITE (Commercial)	93.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
CUI Inc. VOF-300-12	80 °C	-40 °C	16.67 A	1	200 W 300 W	3 kV	Open Frame	90 V	264 V	Chassis Mount	12 V	60950-1 61000-6-1 61000-6-2	5 in	1.38 in	3 in	ITE (Commercial)	92.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
CUI Inc. VOF-300-36	80 °C	-40 °C	5.56 A	1	200 W 300 W	3 kV	Open Frame	90 V	264 V	Chassis Mount	36 V	60950-1	5 in	1.38 in	3 in	ITE (Commercial)	93.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
