77803W 0101000
ActiveBelden Inc.

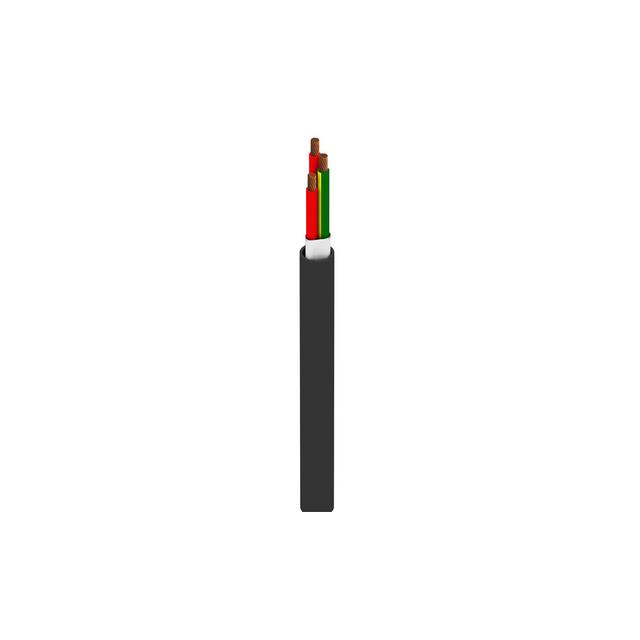

CABLE 3COND 20AWG BLACK FEET
Deep-Dive with AI
Search across all available documentation for this part.
77803W 0101000
ActiveBelden Inc.
CABLE 3COND 20AWG BLACK FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 77803W 0101000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 105 |
| Conductor Strand [custom] | 38 AWG |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 7.57 mm |
| Jacket (Insulation) Diameter [diameter] | 0.298 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -5 °C |
| Ratings | UL Style 2587 |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 600 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 3.85 | |
| 3 | $ 3.58 | |||
| 5 | $ 3.44 | |||
| 7 | $ 3.35 | |||
| 10 | $ 3.29 | |||
| 25 | $ 3.08 | |||
| 50 | $ 3.03 | |||
Description
General part information
77803W Series
3 Conductor Multi-Conductor Cable Black 18 AWG Enter Number of Feet in Order Quantity
