7405W 0601000

Active

Belden Inc.

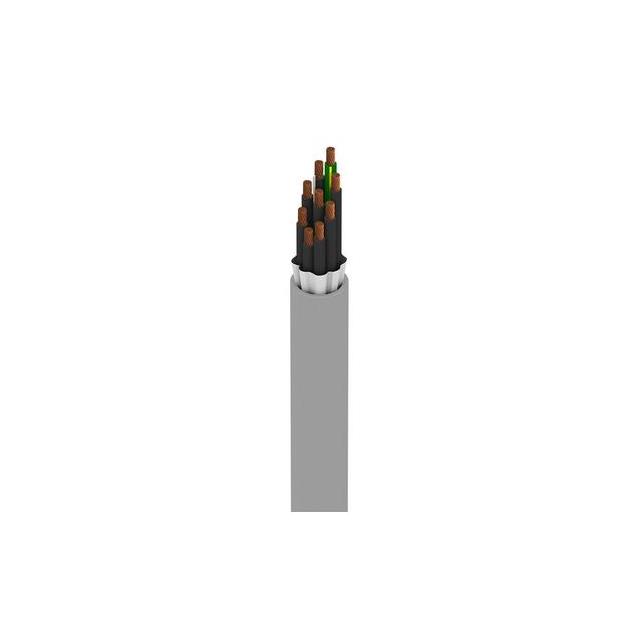

CABLE 9COND 20AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 20AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7405W 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.345 "
Jacket (Insulation) Diameter [diameter]	8.76 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	9
Ratings	UL Style 20327
Voltage	300 V
Wire Gauge	20 AWG

Part	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket Color	Cable Type	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Conductor Material	Ratings	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 7405W 0601000	300 V	19	32 AWG	Oil Resistant UV Resistant	Chrome	Multi-Conductor	20 AWG	Thermoplastic Elastomer (TPE)	9	Copper Bare	UL Style 20327	1000 ft	304.8 m	1.067 mm	0.042 in	Poly-Vinyl Chloride (PVC)	0.345 "	8.76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.25

General part information

9 Conductor Multi-Conductor Cable Chrome 20 AWG 1000.0' (304.8m)
