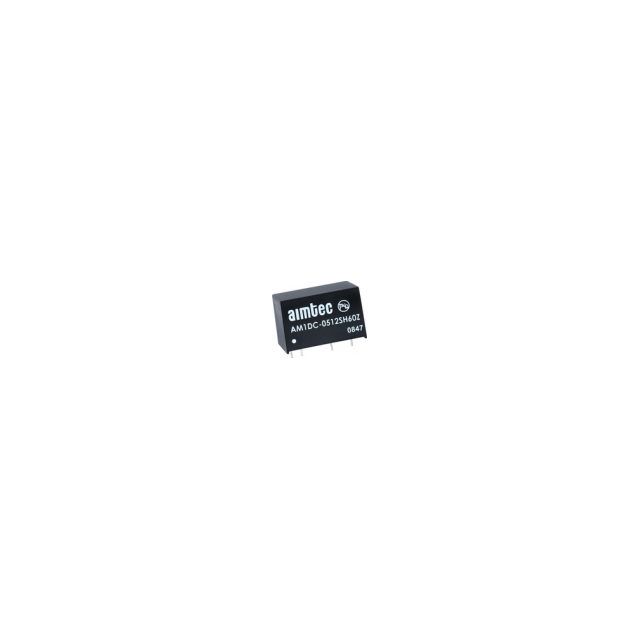

AM1DC-0512SH60Z

Active

aimtec

DC DC CONVERTER 12V 1W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 12V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 1W

Part	Supplier Device Package	Package / Case	Type	Approval Agency	Voltage - Output 1	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Voltage - Isolation	Voltage - Input (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)
aimtec AM1DC-0505SH60Z	7-SIP	7-SIP Module, 4 Leads	Isolated Module	CE	5 V	4.5 V	75 %	200 mA	Through Hole	1	6000 V	5.5 V	ITE (Commercial)	85 °C	-40 °C
aimtec AM1DC-0512SH60Z			Isolated Module	CE	12 V	4.5 V	76 %		Through Hole	1	6000 V	5.5 V	ITE (Commercial)	85 °C	-40 °C	83.3 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 83.3mA 4.5V - 5.5V Input
