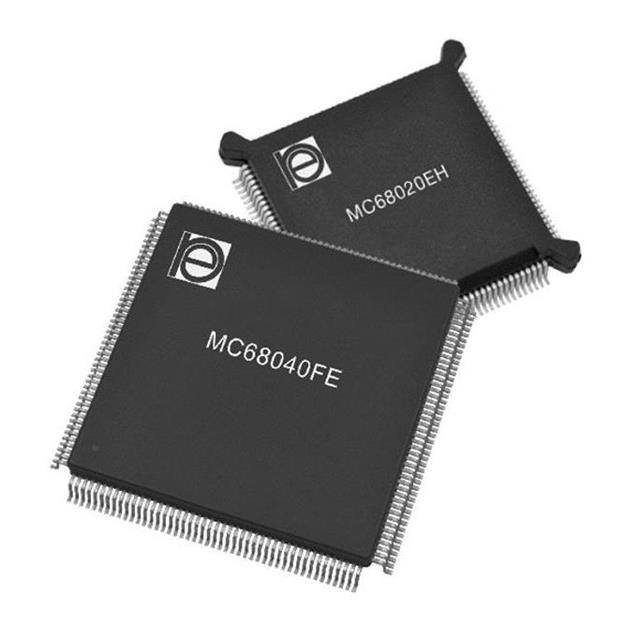

MC68040FE33V

Active

Freescale Semiconductor - NXP

IC MPU M680X0 33MHZ 184CQFP

Deep-Dive with AI

Search across all available documentation for this part.

MC68040FE33V

Active

Freescale Semiconductor - NXP

IC MPU M680X0 33MHZ 184CQFP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MC68040FE33V

Additional Interfaces	SCI, SPI
Core Processor	68040
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	184-BCQFP
Speed	33 MHz
Supplier Device Package	184-CQFP (31.3x31.3)
Voltage - I/O	5 V

MC680 Series

Part	Core Processor	Mounting Type	Number of Cores/Bus Width	Speed	Voltage - I/O	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Additional Interfaces
Freescale Semiconductor - NXP MC68020EH20E	68020	Surface Mount	1 Core 32 Bit	20 MHz	5 V	132-PQFP (46x46)	70 °C	0 °C	132-BQFP Bumpered
Freescale Semiconductor - NXP MC68040RC40A	68040	Through Hole	1 Core 32 Bit	40 MHz	5 V	179-PGA	70 °C	0 °C	179-BEPGA	47.24	47.24	SCI SPI
Freescale Semiconductor - NXP MC68030RC40C	68030	Through Hole	1 Core 32 Bit	40 MHz	5 V	128-PGA	70 °C	0 °C	128-BPGA	34.55	34.55	SCI SPI
Freescale Semiconductor - NXP MC68040FE33V	68040	Surface Mount	1 Core 32 Bit	33 MHz	5 V	184-CQFP (31.3x31.3)	70 °C	0 °C	184-BCQFP			SCI SPI
Freescale Semiconductor - NXP MC68040FE33A	68040	Surface Mount	1 Core 32 Bit	33 MHz	5 V	184-CQFP (31.3x31.3)	70 °C	0 °C	184-BCQFP			SCI SPI
Freescale Semiconductor - NXP MC68040RC25V	68040	Through Hole	1 Core 32 Bit	25 MHz	5 V	182-PGA 47.24x47.24	70 °C	0 °C	182-BEPGA			SCI SPI
Freescale Semiconductor - NXP MC68020CRC16E	68020	Through Hole	1 Core 32 Bit	166 MHz	5 V	114-PGA	85 °C	-40 °C	114-BPGA	34.55	34.55
Freescale Semiconductor - NXP MC68040RC33A	68040	Through Hole	1 Core 32 Bit	33 MHz	5 V	179-PGA	70 °C	0 °C	179-BEPGA	47.24	47.24	SCI SPI
Freescale Semiconductor - NXP MC68040FE33V	68040	Surface Mount	1 Core 32 Bit	33 MHz	5 V	184-CQFP (31.3x31.3)	70 °C	0 °C	184-BCQFP			SCI SPI
Freescale Semiconductor - NXP MC68020FE16E	68020	Surface Mount	1 Core 32 Bit	166 MHz	5 V	132-CQFP (24x24)	70 °C	0 °C	132-BCQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 260.59

Description

General part information

MC680 Series

68040 Microprocessor IC M680x0 1 Core, 32-Bit 33MHz 184-CQFP (31.3x31.3)

Documents

Technical documentation and resources

No documents available
