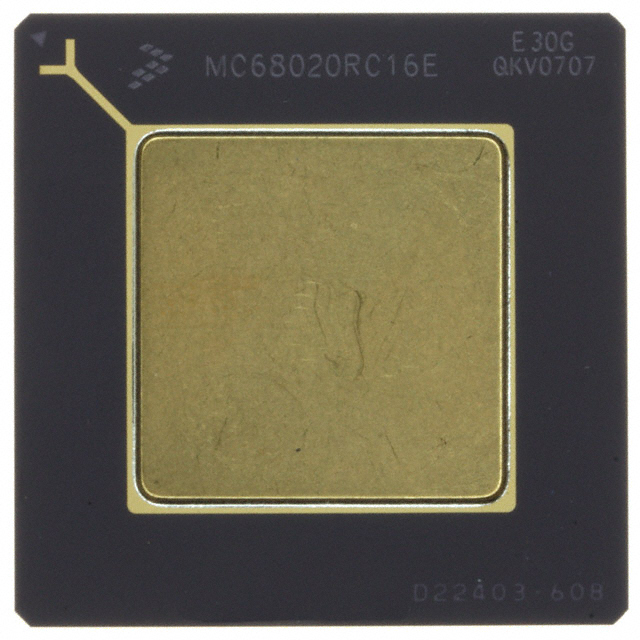

MC68020CRC16E

Obsolete

Freescale Semiconductor - NXP

IC MPU M680X0 166MHZ 114PGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MC68020CRC16E

Obsolete

Freescale Semiconductor - NXP

IC MPU M680X0 166MHZ 114PGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MC68020CRC16E

Core Processor	68020
Graphics Acceleration	False
Mounting Type	Through Hole
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	114-BPGA
Speed	166 MHz
Supplier Device Package	114-PGA
Supplier Device Package [x]	34.55
Supplier Device Package [y]	34.55
Voltage - I/O	5 V

MC680 Series

Part	Core Processor	Mounting Type	Number of Cores/Bus Width	Speed	Voltage - I/O	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Additional Interfaces
Freescale Semiconductor - NXP MC68020EH20E	68020	Surface Mount	1 Core 32 Bit	20 MHz	5 V	132-PQFP (46x46)	70 °C	0 °C	132-BQFP Bumpered
Freescale Semiconductor - NXP MC68040RC40A	68040	Through Hole	1 Core 32 Bit	40 MHz	5 V	179-PGA	70 °C	0 °C	179-BEPGA	47.24	47.24	SCI SPI
Freescale Semiconductor - NXP MC68030RC40C	68030	Through Hole	1 Core 32 Bit	40 MHz	5 V	128-PGA	70 °C	0 °C	128-BPGA	34.55	34.55	SCI SPI
Freescale Semiconductor - NXP MC68040FE33V	68040	Surface Mount	1 Core 32 Bit	33 MHz	5 V	184-CQFP (31.3x31.3)	70 °C	0 °C	184-BCQFP			SCI SPI
Freescale Semiconductor - NXP MC68040FE33A	68040	Surface Mount	1 Core 32 Bit	33 MHz	5 V	184-CQFP (31.3x31.3)	70 °C	0 °C	184-BCQFP			SCI SPI
Freescale Semiconductor - NXP MC68040RC25V	68040	Through Hole	1 Core 32 Bit	25 MHz	5 V	182-PGA 47.24x47.24	70 °C	0 °C	182-BEPGA			SCI SPI
Freescale Semiconductor - NXP MC68020CRC16E	68020	Through Hole	1 Core 32 Bit	166 MHz	5 V	114-PGA	85 °C	-40 °C	114-BPGA	34.55	34.55
Freescale Semiconductor - NXP MC68040RC33A	68040	Through Hole	1 Core 32 Bit	33 MHz	5 V	179-PGA	70 °C	0 °C	179-BEPGA	47.24	47.24	SCI SPI
Freescale Semiconductor - NXP MC68040FE33V	68040	Surface Mount	1 Core 32 Bit	33 MHz	5 V	184-CQFP (31.3x31.3)	70 °C	0 °C	184-BCQFP			SCI SPI
Freescale Semiconductor - NXP MC68020FE16E	68020	Surface Mount	1 Core 32 Bit	166 MHz	5 V	132-CQFP (24x24)	70 °C	0 °C	132-BCQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MC680 Series

68020 Microprocessor IC M680x0 1 Core, 32-Bit 166MHz 114-PGA (34.55x34.55)

Documents

Technical documentation and resources
