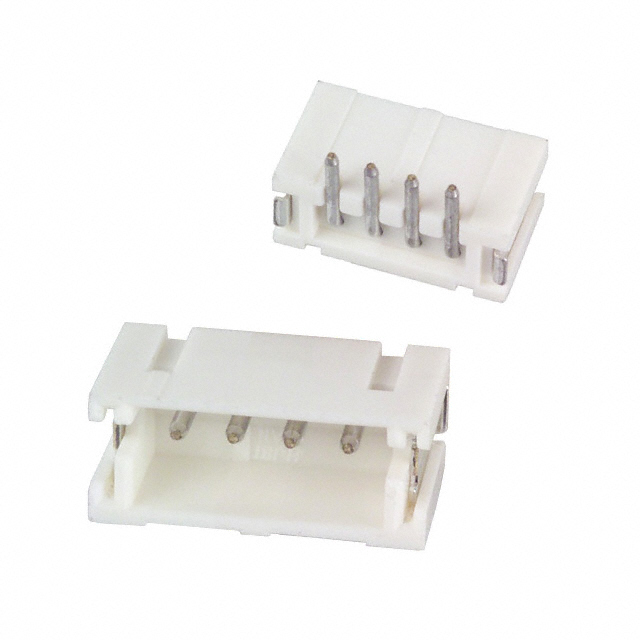

B4B-ZR-SM4-TF
ActiveJST Sales America Inc.
CONN HEADER SMD 4POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
B4B-ZR-SM4-TF
ActiveJST Sales America Inc.
CONN HEADER SMD 4POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B4B-ZR-SM4-TF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.197 in |
| Insulation Height | 5 mm |
| Insulation Material | Polyamide (PA6T), Glass Filled, Nylon 6T |
| Mated Stacking Heights | 6.4 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
B4B-ZR Series
| Part | Insulation Color | Number of Positions | Voltage Rating | Mated Stacking Heights | Contact Type | Mounting Type | Termination | Material Flammability Rating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Style | Fastening Type | Connector Type | Contact Material | Features | Shrouding | Insulation Material | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Shape | Number of Rows | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Contact Length - Post [x] | Contact Length - Post [x] | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Natural | 4 | 50 V | 6.4 mm | Male Pin | Surface Mount | Solder | UL94 V-0 | Tin | -25 °C | 85 °C | Board to Cable/Wire | Detent Lock | Header | Brass | Pick and Place Solder Retention | Shrouded - 4 Wall | Glass Filled Nylon 6T Polyamide (PA6T) | All | 0.197 in | 5 mm | Circular | 1 | ||||||
JST Sales America Inc. | Natural | 4 | 50 V | 5.6 mm | Male Pin | Through Hole | Solder | UL94 V-0 | Tin | -25 °C | 85 °C | Board to Cable/Wire | Detent Lock | Header | Brass | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 Glass Filled | All | 0.177 in | 4.5 mm | Circular | 1 | 2.4 mm | 0.094 in | 0.106 in | 2.69 mm | 0.256 in | 6.5 mm | |
JST Sales America Inc. | Natural | 4 | 50 V | 6.4 mm | Male Pin | Surface Mount | Solder | UL94 V-0 | Tin | -25 °C | 85 °C | Board to Cable/Wire | Detent Lock | Header | Brass | Solder Retention | Shrouded - 4 Wall | Glass Filled Nylon 6T Polyamide (PA6T) | All | 0.197 in | 5 mm | Circular | 1 | ||||||
JST Sales America Inc. | Natural | 4 | 50 V | 5.6 mm | Male Pin | Through Hole | Solder | UL94 V-0 | Tin | -25 °C | 85 °C | Board to Cable/Wire | Detent Lock | Header | Brass | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 Glass Filled | All | 0.177 in | 4.5 mm | Circular | 1 | 2.4 mm | 0.094 in | 0.134 in | 3.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.71 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.51 | |||
| 500 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 0.71 | ||
| 10 | $ 0.62 | |||
| 100 | $ 0.51 | |||
| 500 | $ 0.44 | |||
| Tape & Reel (TR) | 1000 | $ 0.36 | ||
| 2000 | $ 0.35 | |||
| 3000 | $ 0.33 | |||
| 5000 | $ 0.32 | |||
| 10000 | $ 0.30 | |||
| 25000 | $ 0.29 | |||
Description
General part information
B4B-ZR Series
Connector Header Surface Mount 4 position 0.059" (1.50mm)
