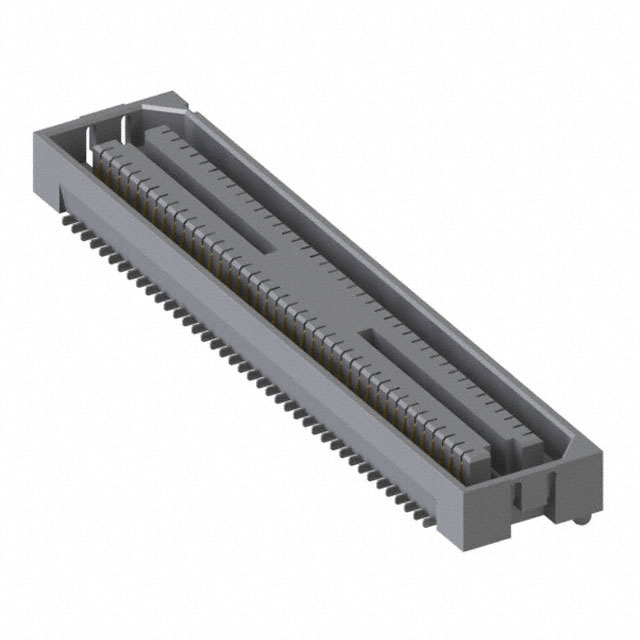

BSE-040-01-L-D-A-FL

Active

Samtec Inc.

CONN RCPT 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

BSE-040-01-L-D-A-FL

Active

Samtec Inc.

CONN RCPT 80POS SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSE-040-01-L-D-A-FL

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Friction Lock, Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	8 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BSE-040 Series

Part	Pitch [x]	Pitch [x]	Mounting Type	Features	Mated Stacking Heights	Contact Finish	Number of Rows	Number of Positions	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. BSE-040-01-H-D-A-TR	0.8 mm	0.031 in	Surface Mount	Board Guide	5 mm 8 mm	Gold	2	80	Center Strip Contacts Receptacle	3.25 mm	0.128 in
Samtec Inc. BSE-040-01-F-D-EM2	0.8 mm	0.031 in	Board Edge Straddle Mount			Gold	2	80	Center Strip Contacts Receptacle			Flash
Samtec Inc. BSE-040-01-L-D-EM2	0.8 mm	0.031 in	Board Edge Straddle Mount			Gold	2	80	Center Strip Contacts Receptacle				10 Áin	0.25 Ám
Samtec Inc. BSE-040-01-L-D-TR	0.8 mm	0.031 in	Surface Mount		5 mm 8 mm	Gold	2	80	Center Strip Contacts Receptacle	3.25 mm	0.128 in		10 Áin	0.25 Ám
Samtec Inc. BSE-040-01-L-D-A-FL	0.8 mm	0.031 in	Surface Mount	Board Guide Friction Lock	5 mm 8 mm	Gold	2	80	Center Strip Contacts Receptacle	3.25 mm	0.128 in		10 Áin	0.25 Ám
Samtec Inc. BSE-040-01-C-D-A-TR	0.8 mm	0.031 in	Surface Mount	Board Guide	5 mm 8 mm	Gold	2	80	Center Strip Contacts Receptacle	3.25 mm	0.128 in		50 µin	1.27 µm
Samtec Inc. BSE-040-01-L-D-A	0.8 mm	0.031 in	Surface Mount	Board Guide	5 mm 8 mm	Gold	2	80	Center Strip Contacts Receptacle	3.25 mm	0.128 in		10 Áin	0.25 Ám
Samtec Inc. BSE-040-01-F-D-A-TR	0.8 mm	0.031 in	Surface Mount	Board Guide	5 mm 8 mm	Gold	2	80	Center Strip Contacts Receptacle	3.25 mm	0.128 in	Flash
Samtec Inc. BSE-040-01-F-D-LC	0.8 mm	0.031 in	Surface Mount		5 mm 8 mm	Gold	2	80	Center Strip Contacts Receptacle	3.25 mm	0.128 in	Flash
Samtec Inc. BSE-040-01-L-D	0.8 mm	0.031 in	Surface Mount		5 mm 8 mm	Gold	2	80	Center Strip Contacts Receptacle	3.25 mm	0.128 in		10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.65

Description

General part information

BSE-040 Series

80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

No documents available
