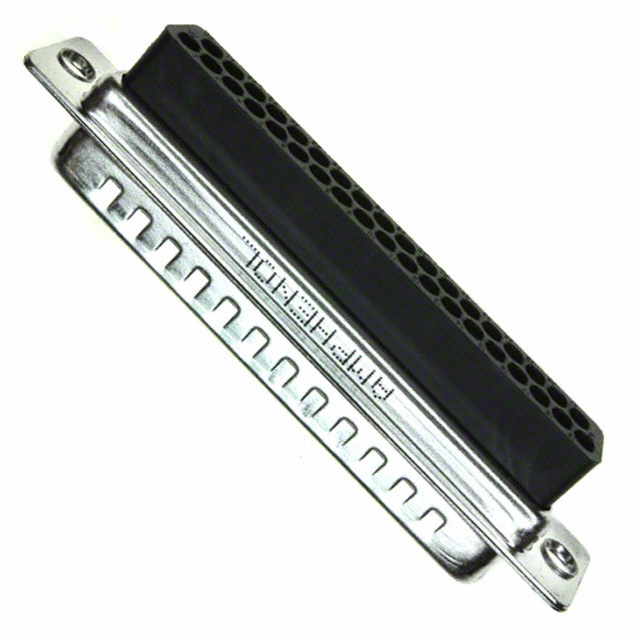

L777-RR-C-37-P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HOUSING PLUG 37POS

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HOUSING PLUG 37POS

Technical Specifications

Parameters and characteristics for this part

Specification	L777-RR-C-37-P

Color	Black
Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	2.54 µm
Shell Finish Thickness	100 µin
Shell Size, Connector Layout	4 (DC, C)

Part	Features	Color	Contact Type	Connector Style	Mounting Type	Number of Positions	Flange Feature	Shell Size, Connector Layout	Dielectric Material	Connector Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish Thickness	Shell Finish Thickness	Number of Rows
Amphenol ICC (Commercial Products) L777-RR-C-37-P	Grounding Indents	Black	Signal	D-Sub	Free Hanging (In-Line)	37	Housing/Shell (Unthreaded)	4 (DC C)	Polybutylene Terephthalate (PBT) Glass Filled	Plug for Male Contacts	Contacts Not Included	-55 °C	125 °C	2.54 µm	100 µin	2
Amphenol ICC (Commercial Products) L777RRC37PVFM	Grounding Indents	Black	Signal	D-Sub	Free Hanging (In-Line)	37	Female Screwlock (M3) Mating Side	4 (DC C)	Polybutylene Terephthalate (PBT) Glass Filled	Plug for Male Contacts	Contacts Not Included	-55 °C	125 °C	2.54 µm	100 µin	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Sub Connector 37 Position
