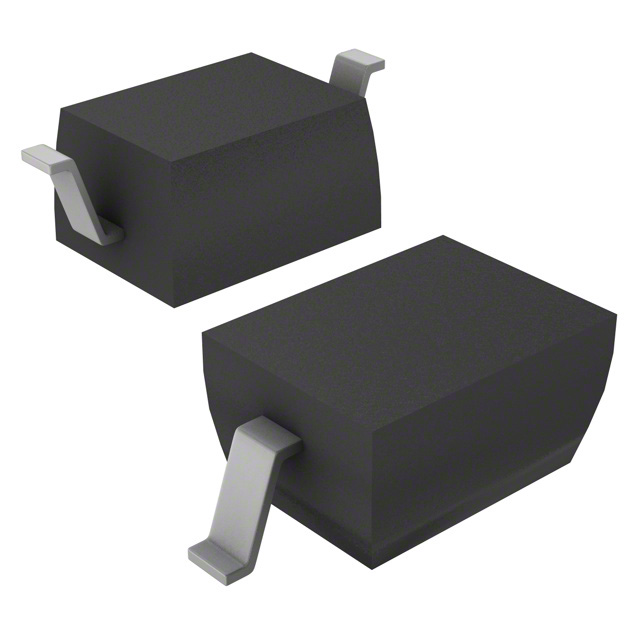

1SS404,H3F
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 20V 300MA USC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SS404,H3F
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 20V 300MA USC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SS404,H3F |
|---|---|
| Capacitance @ Vr, F | 46 pF |
| Current - Average Rectified (Io) | 300 mA |
| Current - Reverse Leakage @ Vr | 50 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125 °C |
| Package / Case | SOD-323, SC-76 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | USC |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.11 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Digi-ReelÛ | 1 | $ 0.18 | ||
| 10 | $ 0.11 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 3000 | $ 0.04 | ||
| 6000 | $ 0.03 | |||
| 9000 | $ 0.03 | |||
| 15000 | $ 0.03 | |||
| 21000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 75000 | $ 0.02 | |||
| 150000 | $ 0.02 | |||
| 300000 | $ 0.02 | |||
Description
General part information
1SS404 Series
Diode 20 V 300mA Surface Mount USC
