Technical Specifications
Parameters and characteristics for this part
| Specification | L9915-CB |
|---|---|
| Grade | Automotive |
| Mounting Type | Through Hole |

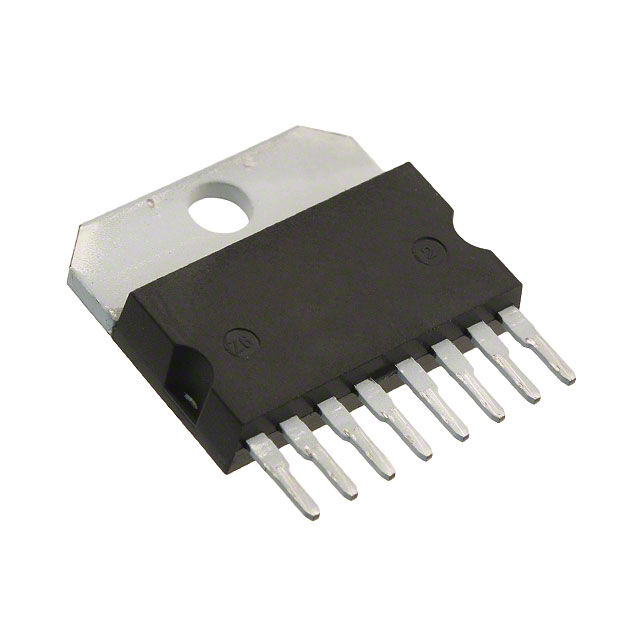

| Package / Case | Multiwatt-8 (Straight Leads) |
| Supplier Device Package | 8-Multiwatt |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 500 | $ 6.31 | |
Description
General part information
L9915 Series
The device is a monolithic alternator voltage regulator intended for use in automotive application.
It includes the control section, the field power stage, fault diagnostic circuit which drives a warning lamp, and the protection against short circuits.
This device regulates in close loop the output of an automotive generator by controlling the field winding current by means of a pulse-width modulation (PWM) high side driver at fixed frequency.
