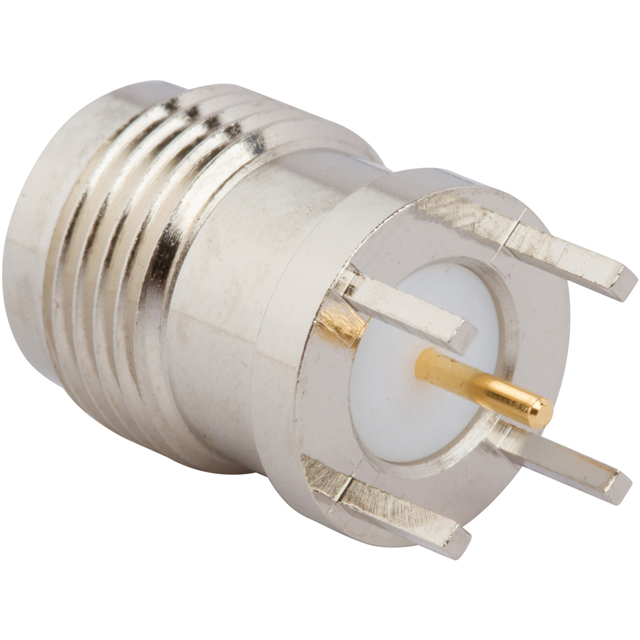

122440RP

Active

Amphenol RF

TNC STRAIGHT PCB JACK, THROUGH H

Search across all available documentation for this part.

Active

Amphenol RF

TNC STRAIGHT PCB JACK, THROUGH H

Technical Specifications

Parameters and characteristics for this part

Specification	122440RP

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mounting Type	Dielectric Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Housing Color	Mating Cycles	Center Contact Plating	Connector Style	Number of Ports	Shield Termination	Contact Termination	Body Material	Frequency - Max [Max]	Connector Type	Body Finish
Amphenol RF 122440RP	Through Hole	Polytetrafluoroethylene (PTFE)	Phosphor Bronze	-65 ░C	165 °C	50 Ohms	Silver	500	Gold	RP-TNC	1	Solder	Solder	Brass	11 GHz	Jack Male Pin	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Through Hole Solder

Technical documentation and resources

No documents available
