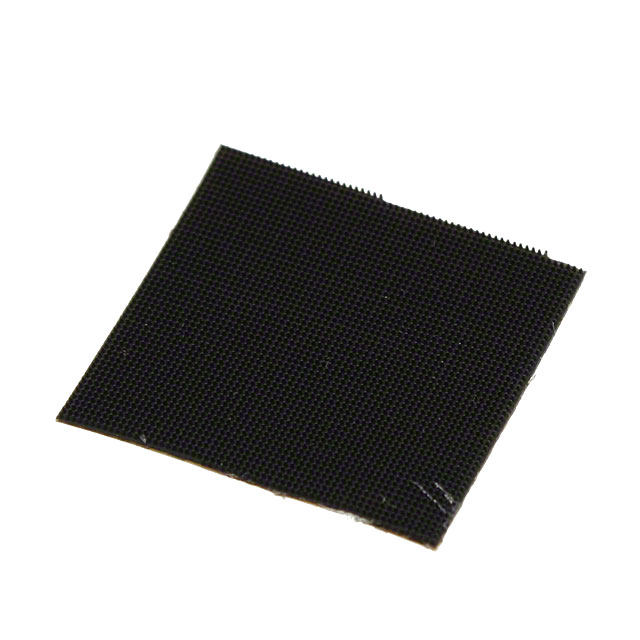

1SQ-25-GM400

Active

3M (TC)

TAPE GRIP MATERIAL BLK 1"X1"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGM110,400 Bulletin Datasheet

1SQ-25-GM400

Active

3M (TC)

TAPE GRIP MATERIAL BLK 1"X1"

Deep-Dive with AI

DocumentsGM110,400 Bulletin Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1SQ-25-GM400

Backing, Carrier	Polyester Mesh
Color	Black
Length [x]	25.4 mm
Length [x]	1 in
Tape Type	Gripping Material
Temperature Range [Max]	160 °F
Temperature Range [Max]	71 °C
Temperature Range [Min]	-40 °C
Temperature Range [Min]	-40 °F
Thickness	0.033 in
Thickness	0.84 mm
Thickness	33 mil
Thickness - Adhesive	5 mils
Thickness - Adhesive	0.005 "
Thickness - Adhesive	0.127 mm
Thickness - Backing, Carrier [custom]	28 mils
Thickness - Backing, Carrier [custom]	0.711 mm
Thickness - Backing, Carrier [custom]	0.028 "
Usage	Gripping
Width [x]	25.4 mm
Width [x]	1 in

GM400 Series

Part	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Backing, Carrier	Thickness	Thickness	Thickness	Length	Length	Length	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Width [x]	Width [x]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Color	Usage	Width [y]	Width [y]	Width [diameter]	Width [diameter]	Length [x]	Length [x]
3M (TC) GM400-6-6	5 mils	0.005 "	0.127 mm	Gripping Material	Polyester Mesh	0.033 in	0.84 mm	33 mil	6 yds	5.5 m	18 '	-40 °C	160 °F	-40 °F	71 °C	6 in	152.4 mm	28 mils	0.711 mm	0.028 "	Black	Gripping
3M (TC) GM400-5-6	5 mils	0.005 "	0.127 mm	Gripping Material	Polyester Mesh	0.033 in	0.84 mm	33 mil	6 yds	5.5 m	18 '	-40 °C	160 °F	-40 °F	71 °C			28 mils	0.711 mm	0.028 "	Black	Gripping	127 mm	5 in
3M (TC) GM400-3-6	5 mils	0.005 "	0.127 mm	Gripping Material	Polyester Mesh	0.033 in	0.84 mm	33 mil	6 yds	5.5 m	18 '	-40 °C	160 °F	-40 °F	71 °C	3 in	76.2 mm	28 mils	0.711 mm	0.028 "	Black	Gripping
3M (TC) GM400CIR-2(10)	5 mils	0.005 "	0.127 mm	Gripping Material	Polyester Mesh	0.033 in	0.84 mm	33 mil				-40 °C	160 °F	-40 °F	71 °C			28 mils	0.711 mm	0.028 "	Black	Gripping			2 in	50.8 mm
3M (TC) GM400CIR-1(25)	5 mils	0.005 "	0.127 mm	Gripping Material	Polyester Mesh	0.033 in	0.84 mm	33 mil				-40 °C	160 °F	-40 °F	71 °C			28 mils	0.711 mm	0.028 "	Black	Gripping			1 in	25.4 mm
3M (TC) 1SQ-25-GM400	5 mils	0.005 "	0.127 mm	Gripping Material	Polyester Mesh	0.033 in	0.84 mm	33 mil				-40 °C	160 °F	-40 °F	71 °C	1 in	25.4 mm	28 mils	0.711 mm	0.028 "	Black	Gripping					25.4 mm	1 in
3M (TC) GM400-1-6	5 mils	0.005 "	0.127 mm	Gripping Material	Polyester Mesh	0.033 in	0.84 mm	33 mil	6 yds	5.5 m	18 '	-40 °C	160 °F	-40 °F	71 °C	1 in	25.4 mm	28 mils	0.711 mm	0.028 "	Black	Gripping
3M (TC) GM400-5-5(5)	5 mils	0.005 "	0.127 mm	Gripping Material	Polyester Mesh	0.033 in	0.84 mm	33 mil				-40 °C	160 °F	-40 °F	71 °C			28 mils	0.711 mm	0.028 "	Black	Gripping	127 mm	5 in			127 mm	5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.67

Description

General part information

GM400 Series

Gripping Material Tape Pressure Sensitive Adhesive (PSA) Adhesive Black 1.00" (25.40mm) X 1.00" (25.40mm)

Documents

Technical documentation and resources

GM110,400 Bulletin

Datasheet
