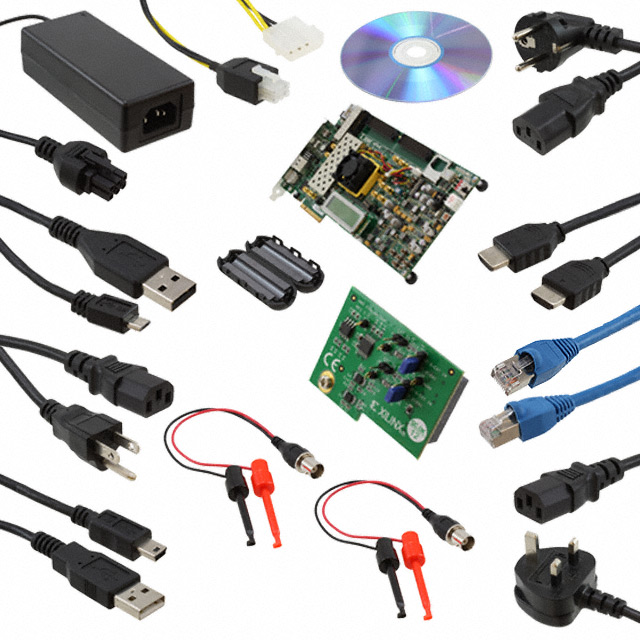

EK-V7-VC707-G-J
ObsoleteAMD
KIT EVAL VIRTEX7 VC707 JAPAN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsVC707 Eval Kit Brief
EK-V7-VC707-G-J
ObsoleteAMD
KIT EVAL VIRTEX7 VC707 JAPAN
Deep-Dive with AI
DocumentsVC707 Eval Kit Brief
Technical Specifications
Parameters and characteristics for this part
| Specification | EK-V7-VC707-G-J |
|---|---|
| Contents | Board(s), Cable(s) |
| For Use With/Related Products | XC7VX485T |
| Interconnect System | FMC |
| Note | J = Japan version does not ship with a power supply |
| Platform | Virtex-7 FPGA VC707 Japan PCIe Card |
| Suggested Programming Environment | ISE |
| Utilized IC / Part | XC7VX485T |
XC7VX485 Series
| Part | Number of Logic Elements/Cells | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Number of I/O | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Number of LABs/CLBs | Total RAM Bits | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] | Utilized IC / Part | Platform | Interconnect System | Suggested Programming Environment | Contents | For Use With/Related Products | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
485760 | 1924-BBGA FCBGA | 100 °C | -40 C | 700 | 1.03 V | 0.97 V | Surface Mount | 37950 | 37969920 Bits | 1930-FCBGA (45x45) | ||||||||||
485760 | 1156-BBGA FCBGA | 100 °C | 0 °C | 600 | 1.03 V | 0.97 V | Surface Mount | 37950 | 37969920 Bits | 1157-FCBGA (35x35) | ||||||||||
485760 | 1156-BBGA FCBGA | 85 °C | 0 °C | 600 | 1.03 V | 0.97 V | Surface Mount | 37950 | 37969920 Bits | 1157-FCBGA (35x35) | ||||||||||
485760 | 1924-BBGA FCBGA | 100 °C | -40 C | 600 | 1.03 V | 0.97 V | Surface Mount | 37950 | 37969920 Bits | 1927-FCBGA (45x45) | ||||||||||
485760 | 1156-BBGA FCBGA | 100 °C | -40 C | 600 | 1.03 V | 0.97 V | Surface Mount | 37950 | 37969920 Bits | 1157-FCBGA (35x35) | ||||||||||
485760 | 1760-BBGA FCBGA | 85 °C | 0 °C | 700 | 1.03 V | 0.97 V | Surface Mount | 37950 | 37969920 Bits | 1761-FCBGA | 42.5 | 42.5 | ||||||||
485760 | 1156-BBGA FCBGA | 85 °C | 0 °C | 350 | 1.03 V | 0.97 V | Surface Mount | 37950 | 37969920 Bits | 1158-FCBGA (35x35) | ||||||||||
XC7VX485T | Virtex-7 FPGA VC7203 Japan | FMC | ISE Vivado | Board(s) Cable(s) | XC7VX485T | J = Japan version does not ship with a power supply | ||||||||||||||
XC7VX485T | Virtex-7 FPGA VC707 Japan PCIe Card | FMC | ISE | Board(s) Cable(s) | XC7VX485T | J = Japan version does not ship with a power supply | ||||||||||||||
485760 | 1156-BBGA FCBGA | 100 °C | 0 °C | 350 | 1.03 V | 0.97 V | Surface Mount | 37950 | 37969920 Bits | 1158-FCBGA (35x35) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XC7VX485 Series
Virtex-7 FPGA VC707 Japan PCIe Card XC7VX485T Virtex®-7 XT FPGA Evaluation Board
