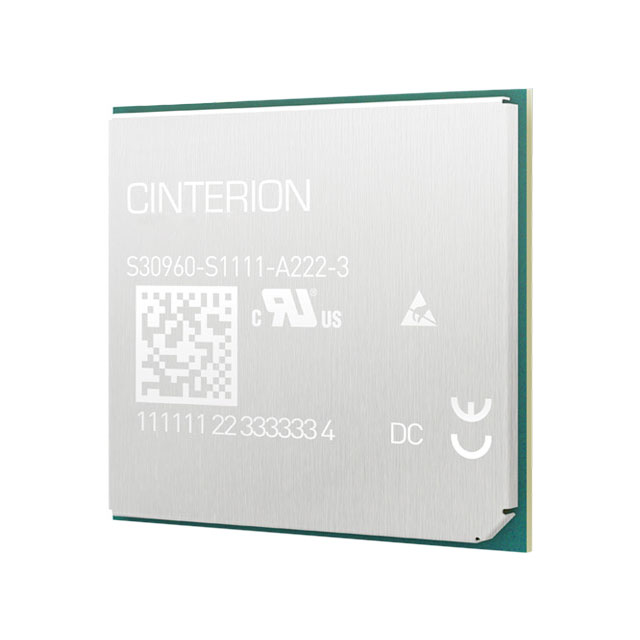

ELS61-AUS REL.1 MR NT

Obsolete

Telit Cinterion

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Telit Cinterion

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ELS61-AUS REL.1 MR NT	ELS61 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Data Rate	10.2 Mbps	10.2 Mbps
Frequency	900 MHz, 1800 MHz, 700 MHz, 2100 MHz, 850 MHz	1.7 - 2100 MHz
Memory Size	18 MB, 30 MB	18 - 30 MB
Memory Size	-	31 MB
Memory Size	-	18 MB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	90 °C	85 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	122-LGA Module	122-LGA Module, Module
Power - Output	33 dBm	33 dBm
Protocol	GSM, HSUPA, EDGE, GPRS, UMTS, HSDPA, LTE	GSM, HSUPA, EDGE, GPRS, UMTS, HSDPA, LTE, HSPA+
RF Family/Standard	Cellular	Cellular
Serial Interfaces	USB, I2C, I2S, UART, ADC, GPIO, SPI, PCM	USB, I2C, I2S, UART, ADC, GPIO, SPI, PCM, PWM
Utilized IC / Part	Intel XMM 7160	Intel XMM 7160
Voltage - Supply [Max]	4.5 V	4.5 V
Voltage - Supply [Min]	3 V	3 V

RF TXRX MODULE CELL SMD

Part	Mounting Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Protocol	Package / Case	Power - Output	Serial Interfaces	Data Rate	Memory Size	RF Family/Standard	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size [custom]	Memory Size [custom]
Telit Cinterion ELS61-AUS REL.1 MR NT	Surface Mount	700 MHz, 850 MHz, 900 MHz, 1800 MHz, 2100 MHz	4.5 V	3 V	Antenna Not Included	EDGE, GPRS, GSM, HSDPA, HSUPA, LTE, UMTS	122-LGA Module	33 dBm	ADC, GPIO, I2C, I2S, PCM, SPI, UART, USB	10.2 Mbps	18 MB, 30 MB	Cellular	Intel XMM 7160	90 °C	-40 °C
Telit Cinterion ELS61-E2 REL.1 MR	Surface Mount	700 MHz, 800 MHz, 900 MHz, 1800 MHz, 2100 MHz	4.5 V	3 V	Antenna Not Included	GSM, HSPA+, LTE, UMTS	Module		ADC, GPIO, I2C, PWM, SPI, USB	10.2 Mbps		Cellular		85 °C	-40 °C	31 MB	18 MB
Telit Cinterion ELS61-US REL.2 CI	Surface Mount	1.7 GHz, 700 MHz, 850 MHz, 1900 MHz, 2100 MHz	4.5 V	3 V	Antenna Not Included	GSM, HSPA+, LTE, UMTS	Module		ADC, GPIO, I2C, PWM, SPI, USB	10.2 Mbps		Cellular		85 °C	-40 °C	31 MB	18 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular EDGE, GPRS, GSM, HSDPA, HSUPA, LTE, UMTS Transceiver Module 700MHz, 850MHz, 900MHz, 1.8GHz, 2.1GHz Antenna Not Included Surface Mount
