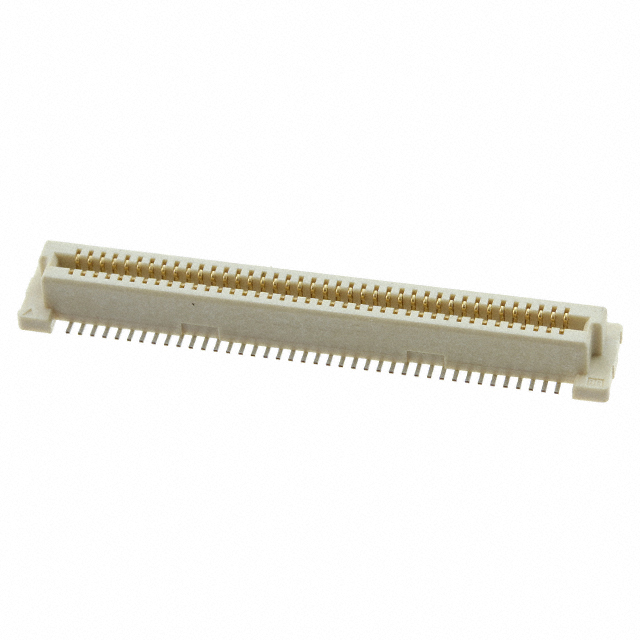

Specification	6123000-3

Connector Type	Outer Shroud Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide
Height Above Board	0.148 in
Mated Stacking Height Options	8mm, 5mm, 6mm, 7mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch	0.031 in

6123000 Series

Part	Height Above Board	Connector Type	Pitch	Contact Finish	Number of Positions	Mated Stacking Height Options	Mounting Type	Contact Finish Thickness	Number of Rows	Features
TE Connectivity AMP Connectors 6123000-2	0.148 in	Outer Shroud Contacts Receptacle	0.031 in	Gold	60	5mm 6mm 7mm 8mm	Surface Mount	30 µin	2	Board Guide

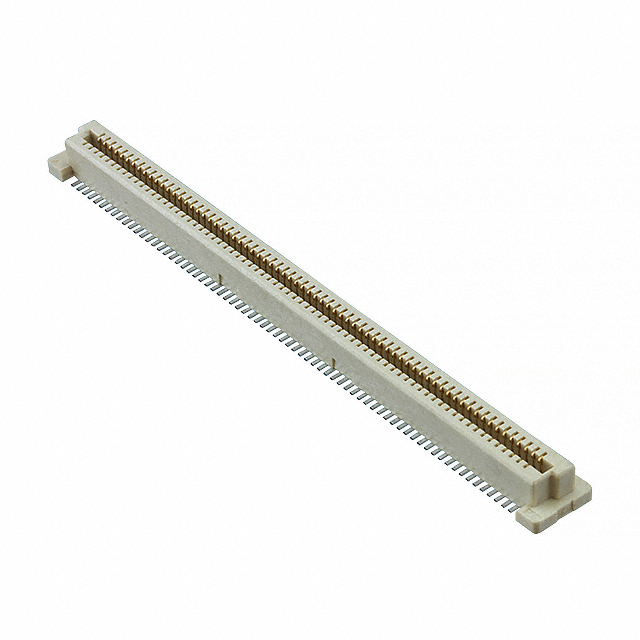

TE Connectivity AMP Connectors 6123000-6	0.148 in	Outer Shroud Contacts Receptacle	0.031 in	Gold	140	5mm 6mm 7mm 8mm	Surface Mount	30 µin	2	Board Guide
TE Connectivity AMP Connectors 6123000-3	0.148 in	Outer Shroud Contacts Receptacle	0.031 in	Gold	80	5mm 6mm 7mm 8mm	Surface Mount	30 µin	2	Board Guide
