84-537-21

Active

Aries Electronics

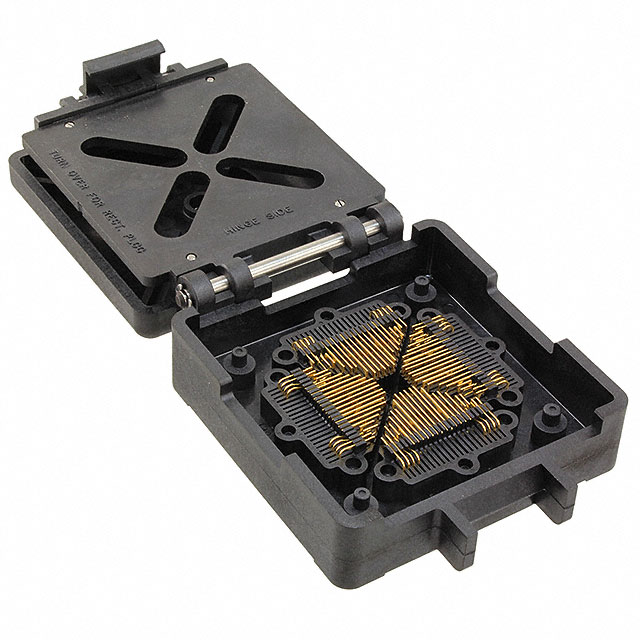

CONN SOCKET PLCC ZIF 84POS GOLD

Search across all available documentation for this part.

Active

Aries Electronics

CONN SOCKET PLCC ZIF 84POS GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	84-537-21	84-537 Series

Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	12 µin	12 µin
Contact Finish Thickness - Mating	0.3 µm	0.3 µm
Features	Closed Frame	Closed Frame
Mounting Type	Surface Mount	Surface Mount
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Type	PLCC, ZIF (ZIP)	PLCC, ZIF (ZIP)

CONN SOCKET PLCC ZIF 84POS GOLD

Part	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Features	Pitch - Mating	Pitch - Mating
Aries Electronics 84-537-21	Gold	Surface Mount	12 µin	0.3 µm	PLCC, ZIF (ZIP)	Closed Frame	0.1 in	2.54 mm
Aries Electronics 84-537-21-7	Gold		12 µin	0.3 µm	PLCC, ZIF (ZIP)	Closed Frame	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

84 (4 x 21) Pos PLCC, ZIF (ZIP) Socket Gold Surface Mount
