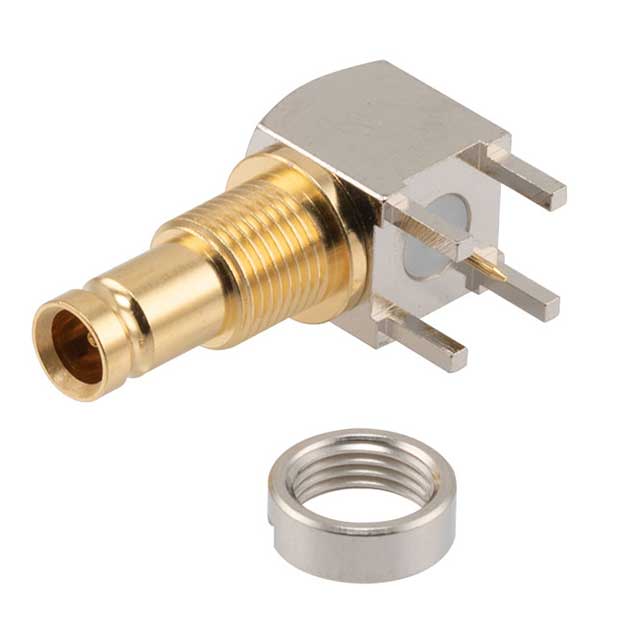

PE40018

Active

Pasternack

1.0/2.3(F) BLKHD MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PE40018

Active

Pasternack

1.0/2.3(F) BLKHD MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE40018	PE4001 Series

Body Finish	Nickel	Nickel, Gold
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	1.0/2.3	HD, BNC, 1.0/2.3
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Bayonet Lock, Snap-On
Frequency - Max [Max]	12 GHz	12 GHz
Housing Color	Silver	Silver, Gold
Impedance	75 Ohms	75 Ohms
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Panel Mount, End Launch, Board Edge, Through Hole, Right Angle
Number of Ports	1	1
Shield Termination	Solder	Solder

PE4001 Series

HD-BNC(F) BLKHD MNT

Part	Housing Color	Mounting Type	Impedance	Body Material	Center Contact Plating	Center Contact Material	Shield Termination	Contact Termination	Dielectric Material	Connector Type	Body Finish	Mounting Feature	Frequency - Max [Max]	Number of Ports	Fastening Type	Connector Style
Pasternack PE40015	Silver	Board Edge, End Launch, Panel Mount	75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Nickel	Bulkhead - Front Side Nut	12 GHz	1	Bayonet Lock	BNC, HD
Pasternack PE40016	Silver	Through Hole	75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Nickel		12 GHz	1	Bayonet Lock	BNC, HD
Pasternack PE40014	Silver	Panel Mount, Right Angle, Through Hole	75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Nickel	Bulkhead - Front Side Nut	12 GHz	1	Bayonet Lock	BNC, HD
Pasternack PE40013	Silver	Panel Mount, Through Hole	75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Nickel	Bulkhead - Front Side Nut	12 GHz	1	Bayonet Lock	BNC, HD
Pasternack PE40017	Gold	Through Hole	75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Gold		12 GHz	1	Snap-On	1.0/2.3
Pasternack PE40011	Silver	Panel Mount, Right Angle, Through Hole	75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Nickel	Bulkhead - Front Side Nut	12 GHz	1	Bayonet Lock	BNC
Pasternack PE40018	Silver	Panel Mount, Right Angle, Through Hole	75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Nickel	Bulkhead - Front Side Nut	12 GHz	1	Snap-On	1.0/2.3
Pasternack PE40012	Silver		75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Nickel	Bulkhead - Front Side Nut	12 GHz	1	Bayonet Lock	BNC
Pasternack PE40010	Silver	Through Hole	75 Ohms	Brass	Gold	Brass	Solder	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Nickel		12 GHz	1	Bayonet Lock	BNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.13
		25	$ 5.82
		50	$ 5.52
		100	$ 5.27

Description

General part information

PE4001 Series

1.0/2.3 Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
