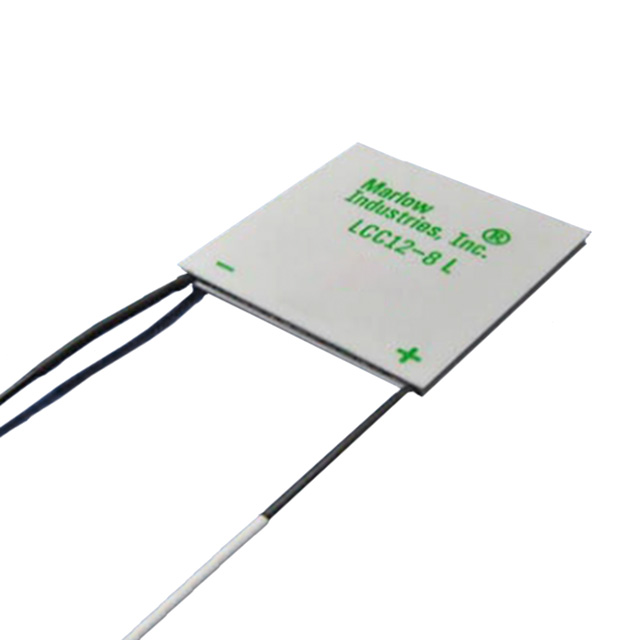

LCC12-8-16LS

Active

Marlow Industries, Inc.

TEM THERMOCYCLER 40X40X3.94MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM THERMOCYCLER 40X40X3.94MM

Technical Specifications

Parameters and characteristics commom to parts in this series

TEM THERMOCYCLER 40X40X3.94MM

Part	Voltage - Max [Max]	Current - Max [Max]	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Qmax @ Th	Resistance	Height [z]	Number of Stages	Features	Delta Tmax @ Th
Marlow Industries, Inc. LCC12-8-16LS	14.7 V	7.4 A	40.01 mm	Square	40.01 mm	71 W	1.6 Ohms	3.94 mm	1	Lapped, Lead Wires, Sealed	66 °C
Marlow Industries, Inc. LCC12-8-01L	14.7 V	7.4 A	40.01 mm	Square	40.01 mm	71 W	1.6 Ohms	3.94 mm	1	Lapped, Lead Wires	66 °C
Marlow Industries, Inc. LCC12-8-01LS	14.7 V	7.4 A	40.01 mm	Square	40.01 mm	71 W	1.6 Ohms	3.94 mm	1	Lapped, Lead Wires, Sealed	66 °C
Marlow Industries, Inc. LCC12-8-01S	14.7 V	7.4 A	40.01 mm	Square	40.01 mm	71 W	1.6 Ohms	4.23 mm	1	Lead Wires, Sealed	66 °C
Marlow Industries, Inc. LCC12-8-01	14.7 V	7.4 A	40.01 mm	Square	40.01 mm	71 W	1.6 Ohms	4.23 mm	1	Lead Wires	66 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 71.0W @ 27°C 7.4 A 85°C
