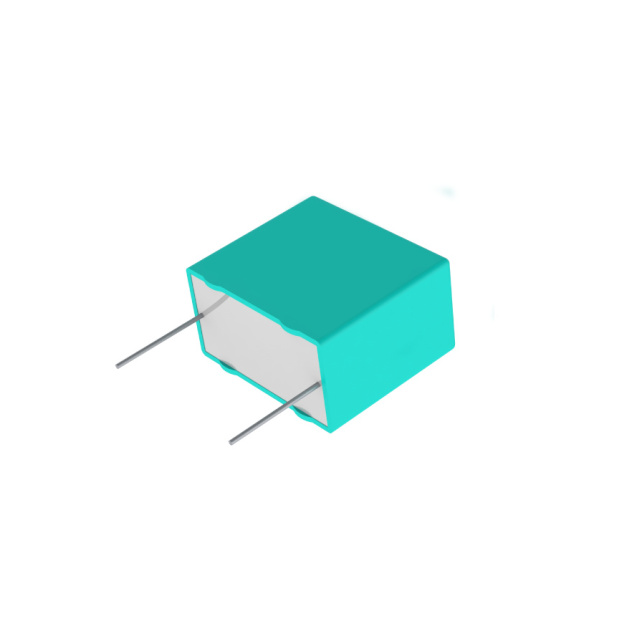

F612JG274J100C

Obsolete

KEMET

FILM CAPACITOR, POLYESTER, 100V, 5% +TOL, 5% -TOL, 400PPM/CEL TC, 0.27UF, THROUGH HOLE MOUNT, 2814, RADIAL LEADED

Search across all available documentation for this part.

Obsolete

KEMET

FILM CAPACITOR, POLYESTER, 100V, 5% +TOL, 5% -TOL, 400PPM/CEL TC, 0.27UF, THROUGH HOLE MOUNT, 2814, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	F612JG274J100C

Applications	General Purpose
Capacitance	0.27 µF
Dielectric Material	Polyester, Metallized - Stacked
Height - Seated (Max) [Max] [z]	0.295 in
Height - Seated (Max) [Max] [z]	7.5 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.283 in, 7.2 mm
Size / Dimension [y]	3.5 mm, 0.138 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	63 V
Voltage Rating - DC	100 V

Part	Voltage Rating - AC	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Lead Spacing	Lead Spacing	Applications	Capacitance	Voltage Rating - DC	Package / Case	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Size / Dimension [x]	Size / Dimension [y]
KEMET F612JG274J100C	63 V	Through Hole	0.295 in	7.5 mm	Polyester Metallized - Stacked	5 mm	0.197 in	General Purpose	0.27 µF	100 V	Radial	5 %	105 ░C	-55 °C	PC Pins	0.283 in 7.2 mm	0.138 in 3.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.27 µF Film Capacitor 63V 100V Polyester, Metallized - Stacked Radial
