Connectors, Interconnects
794896-3
ActiveTE Connectivity Raychem Cable Protection

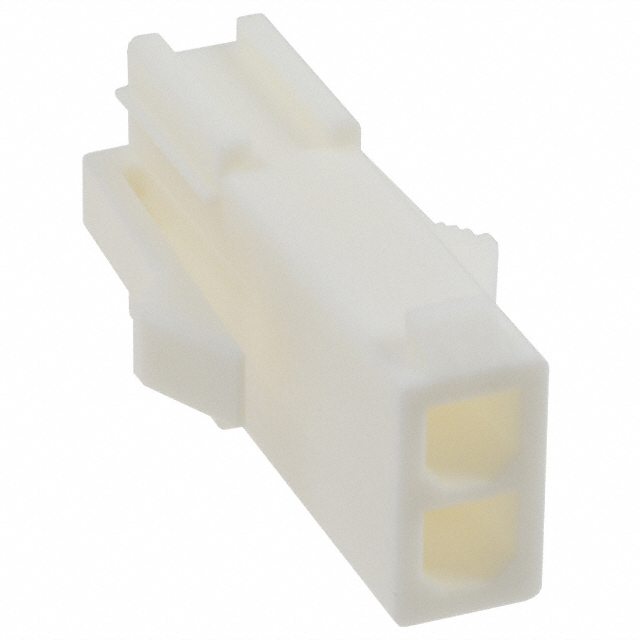

CONN RCPT HSG 2POS MINI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
794896-3
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 2POS MINI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 794896-3 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA6), Nylon 6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Row Spacing | 4.14 mm |
| Row Spacing | 0.163 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.61 | |
| 10 | $ 1.47 | |||
| 25 | $ 1.43 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.31 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.17 | |||
| 1000 | $ 1.05 | |||
| 2500 | $ 0.97 | |||
Description
General part information
794896 Series
2 Rectangular Connectors - Housings Receptacle Natural
