EC6640-000

Active

TE Connectivity Raychem Cable Protection

UV-SCE-3/8-2.0-4

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

UV-SCE-3/8-2.0-4

Technical Specifications

Parameters and characteristics for this part

Specification	EC6640-000

Color	Yellow
Label Size [diameter]	5.6 mm, 8.1 mm
Label Size [diameter]	0.32 in, 0.22 in
Label Size [x]	0.38 in
Label Size [x]	9.5 mm
Label Size [y]	50.8 mm
Label Size [y]	2 in
Label Type	Heat Shrinkable
Material	Polyolefin (PO), Flame Retardant, Irradiated
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C

Part	Material	Label Type	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [diameter]	Label Size [y]	Label Size [x]	Label Size [diameter]	Label Size [x]	Label Size [y]	Color
TE Connectivity Raychem Cable Protection EC6640-000	Polyolefin (PO) Flame Retardant Irradiated	Heat Shrinkable	-55 °C	200 °C	5.6 mm 8.1 mm	50.8 mm	0.38 in	0.22 in 0.32 in	9.5 mm	2 in	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

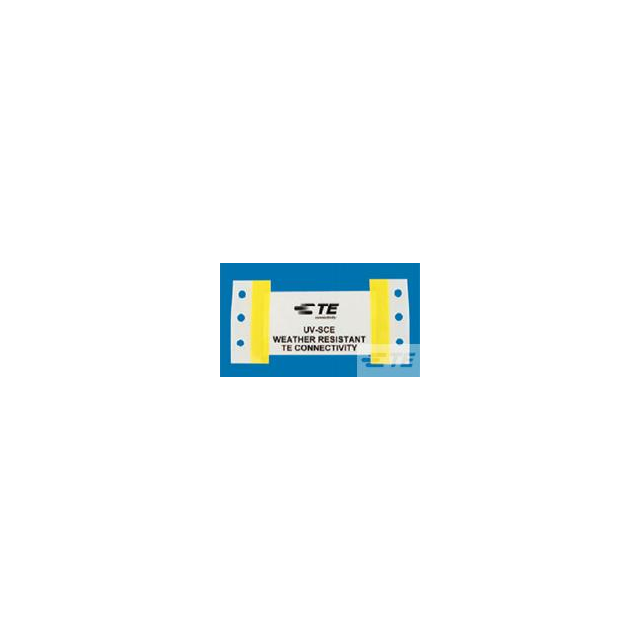

Yellow Heat Shrinkable Label 0.38" W x 2.00" L (9.5mm x 50.8mm); Cable O.D. 0.22" ~ 0.32" (5.6mm ~ 8.1mm)
