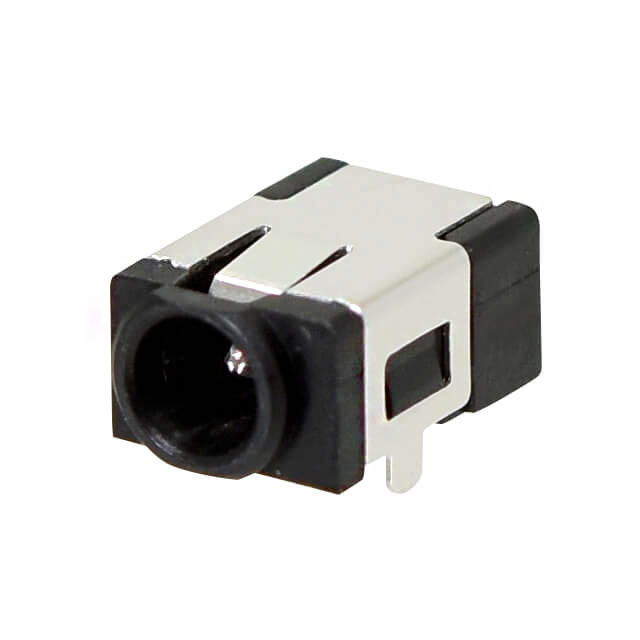

PJ-088CH
ObsoleteCUI Devices
PWR JACK 1X3.1MM RT THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-088CH
ObsoleteCUI Devices
PWR JACK 1X3.1MM RT THROUGH HOLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-088CH |
|---|---|
| Actual Diameter [custom] | 0.122 in |
| Actual Diameter [custom] | 3.1 mm |
| Actual Diameter [custom] | 1 mm |
| Actual Diameter [custom] | 0.039 in |
| Body Color | Silver, Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 3.5 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Industry Recognized Mating Diameter [custom] | 0.11 in |
| Industry Recognized Mating Diameter [custom] | 1.1 mm |
| Industry Recognized Mating Diameter [custom] | 2.8 mm |
| Industry Recognized Mating Diameter [custom] | 0.043 in |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 0.24 in |
| Mating Length/Depth | 6.1 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PJ-088 Series
Power Barrel Connector Jack 1.10mm ID (0.043"), 2.80mm OD (0.110") Through Hole, Right Angle
