Technical Specifications
Parameters and characteristics commom to parts in this series

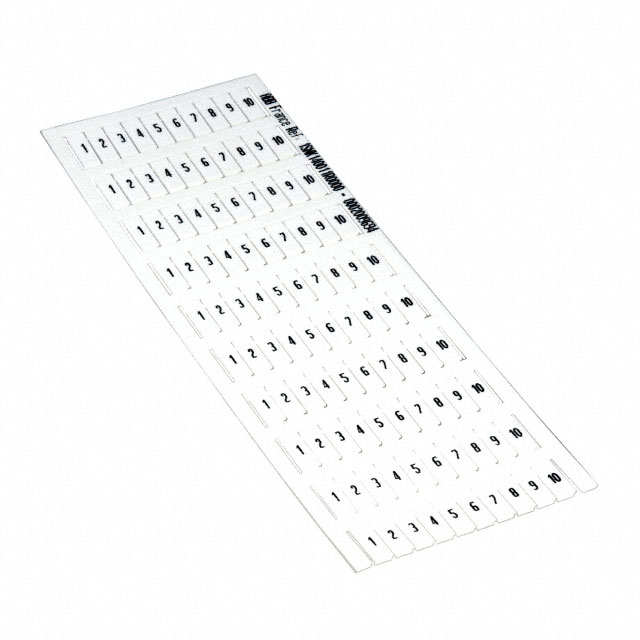

| Specification | 1SNK140011R0000 | 1SNK1 Series |
|---|---|---|
| Color | White | White |
| For Use With/Related Products | SNK Series | SNK Series |
| Legend | Numbers, 1 through 10 | Letters, Y, 81 through 90, Numbers, 2, L1, N, L2, L3, PE, Letters, L, U3, Letters, J, 101 through 110, Letters, X, -, 401 through 500, Letters, I, Letters, E, 21 through 30, 11 through 20, Numbers, 0, Letters, T, Numbers, 3, V3, Letters, K, Numbers, 6, Numbers, 1 through 10, Letters, Z, Ground Symbol |
| Legend | - | 80 - 140 |
| Legend | - | 71 - 131 |
| Pitch [x] | 5.2 mm | 5.2 - 6 mm |
| Pitch [x] | 0.205 in | 0.205 - 0.236 in |
| Type | Snap In, Label | Snap In, Label |
1SNK1 Series
SNK PRE-PRINTED
| Part | Type | Legend | For Use With/Related Products | Color | Pitch [x] | Pitch [x] | Legend [Max] | Legend [Min] |
|---|---|---|---|---|---|---|---|---|
TE Connectivity ENTRELEC 1SNK166251R0000 | Label, Snap In | Letters, Y | SNK Series | White | ||||
TE Connectivity ENTRELEC 1SNK166252R0000 | Label, Snap In | Letters, Y | SNK Series | White | ||||
TE Connectivity ENTRELEC 1SNK150083R0000 | Label, Snap In | 81 through 90 | SNK Series | White | 0.236 in | 6 mm | ||
TE Connectivity ENTRELEC 1SNK140084R0000 | Label, Snap In | 81 through 90 | SNK Series | White | 0.205 in | 5.2 mm | ||
TE Connectivity ENTRELEC 1SNK167021R0000 | Label, Snap In | Numbers, 2 | SNK Series | White | ||||
TE Connectivity ENTRELEC 1SNK160082R0000 | Label, Snap In | SNK Series | White | 80 | 71 | |||
TE Connectivity ENTRELEC 1SNK149001R0000 | Label, Snap In | L1, L2, L3, N, PE | SNK Series | White | 0.205 in | 5.2 mm | ||
TE Connectivity ENTRELEC 1SNK166122R0000 | Label, Snap In | Letters, L | SNK Series | White | ||||
TE Connectivity ENTRELEC 1SNK168001R0000 | Label, Snap In | SNK Series | White | |||||
TE Connectivity ENTRELEC 1SNK156031R0000 | Label, Snap In | SNK Series | White | 0.236 in | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1SNK1 Series
Connector Label, Snap In For SNK Series
