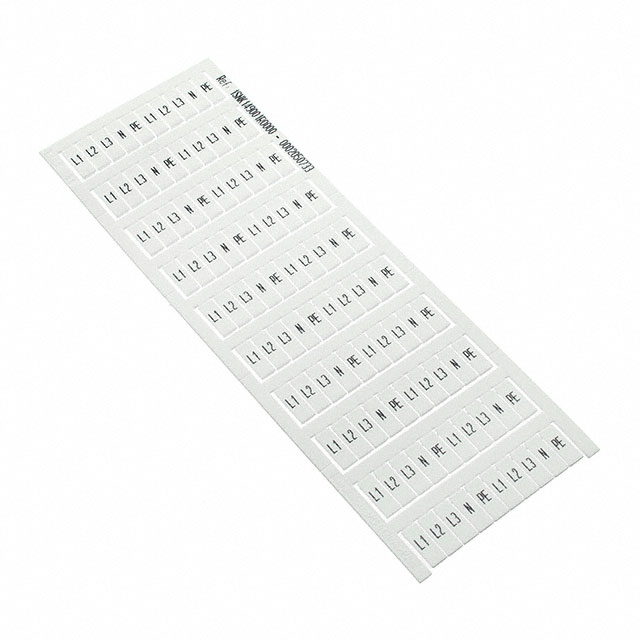

1SNK149001R0000

Active

TE Connectivity ENTRELEC

SNK PRE-PRINTED

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

SNK PRE-PRINTED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1SNK149001R0000	1SNK1 Series

Color	White	White
For Use With/Related Products	SNK Series	SNK Series
Legend	L1, N, L2, L3, PE	Letters, Y, 81 through 90, Numbers, 2, L1, N, L2, L3, PE, Letters, L, U3, Letters, J, 101 through 110, Letters, X, -, 401 through 500, Letters, I, Letters, E, 21 through 30, 11 through 20, Numbers, 0, Letters, T, Numbers, 3, V3, Letters, K, Numbers, 6, Numbers, 1 through 10, Letters, Z, Ground Symbol
Legend	-	80 - 140
Legend	-	71 - 131
Pitch [x]	5.2 mm	5.2 - 6 mm
Pitch [x]	0.205 in	0.205 - 0.236 in
Type	Snap In, Label	Snap In, Label

SNK PRE-PRINTED

Part	Type	Legend	For Use With/Related Products	Color	Pitch [x]	Pitch [x]	Legend [Max]	Legend [Min]
TE Connectivity ENTRELEC 1SNK166251R0000	Label, Snap In	Letters, Y	SNK Series	White
TE Connectivity ENTRELEC 1SNK166252R0000	Label, Snap In	Letters, Y	SNK Series	White
TE Connectivity ENTRELEC 1SNK150083R0000	Label, Snap In	81 through 90	SNK Series	White	0.236 in	6 mm
TE Connectivity ENTRELEC 1SNK140084R0000	Label, Snap In	81 through 90	SNK Series	White	0.205 in	5.2 mm
TE Connectivity ENTRELEC 1SNK167021R0000	Label, Snap In	Numbers, 2	SNK Series	White
TE Connectivity ENTRELEC 1SNK160082R0000	Label, Snap In		SNK Series	White			80	71
TE Connectivity ENTRELEC 1SNK149001R0000	Label, Snap In	L1, L2, L3, N, PE	SNK Series	White	0.205 in	5.2 mm
TE Connectivity ENTRELEC 1SNK166122R0000	Label, Snap In	Letters, L	SNK Series	White
TE Connectivity ENTRELEC 1SNK168001R0000	Label, Snap In		SNK Series	White
TE Connectivity ENTRELEC 1SNK156031R0000	Label, Snap In		SNK Series	White	0.236 in	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Label, Snap In For SNK Series
