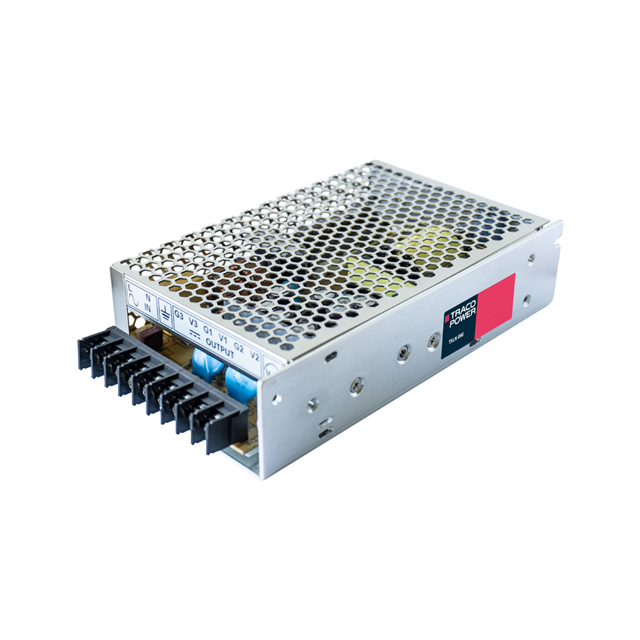

TXLN 080-212

Active

Traco Power

AC/DC CONVERTER 5V 12V 93W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 5V 12V 93W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TXLN 080-212	TXLN 080 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus, CE	CB, cURus, CE
Current - Output 1	9 A	8 - 9 A
Current - Output 2	4 A	2 - 4 A
Efficiency	79 %	79 - 80 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	2	2 - 3
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	93 W	93 - 112 W
Size / Dimension [x]	159 mm	159 mm
Size / Dimension [x]	6.26 in	6.26 in
Size / Dimension [y]	3.74 "	3.74 "
Size / Dimension [y]	95 mm	95 mm
Size / Dimension [z]	1.5 "	1.5 "
Size / Dimension [z]	38 mm	38 mm
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed
Voltage - Input [Max]	264 VAC, 375 VDC	264 - 375 VAC
Voltage - Input [Min]	88 VAC, 125 VDC	88 - 125 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 V
Voltage - Output 2	12 V	12 - 24 V
Voltage - Output 3	-	-12 - 24 V

AC/DC CONVERTER 5V 12V 24V 112W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Voltage - Output 2	Efficiency	Features	Approval Agency	Voltage - Output 1	Power (Watts)	Standard Number	Current - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Voltage - Output 3	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Mounting Type	Type
Traco Power TXLN 080-3125	264 VAC, 375 VDC	88 VAC, 125 VDC	3	12 V	79 %	Adjustable Output, Universal Input	CB, CE, cURus	5 V	112 W	62368-1	4 A	-20 °C	70 °C	8 A	24 V	ITE (Commercial)	159 mm	1.5 "	6.26 in	38 mm	3.74 "	95 mm	3000 V	Chassis Mount	Enclosed
Traco Power TXLN 080-312M2	264 VAC, 375 VDC	88 VAC, 125 VDC	3	12 V	80 %	Adjustable Output, Universal Input	CB, CE, cURus	5 V	94 W	62368-1	3.5 A	-20 °C	70 °C	8 A	-12 V	ITE (Commercial)	159 mm	1.5 "	6.26 in	38 mm	3.74 "	95 mm	3000 V	Chassis Mount	Enclosed
Traco Power TXLN 080-212	264 VAC, 375 VDC	88 VAC, 125 VDC	2	12 V	79 %	Adjustable Output, Universal Input	CB, CE, cURus	5 V	93 W	62368-1	4 A	-20 °C	70 °C	9 A		ITE (Commercial)	159 mm	1.5 "	6.26 in	38 mm	3.74 "	95 mm	3000 V	Chassis Mount	Enclosed
Traco Power TXLN 080-215	264 VAC, 375 VDC	88 VAC, 125 VDC	2	24 V	80 %	Adjustable Output, Universal Input	CB, CE, cURus	5 V	93 W	62368-1	2 A	-20 °C	70 °C	9 A		ITE (Commercial)	159 mm	1.5 "	6.26 in	38 mm	3.74 "	95 mm	3000 V	Chassis Mount	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 5V 12V 88 ~ 264 VAC, 125 ~ 375 VDC Input
