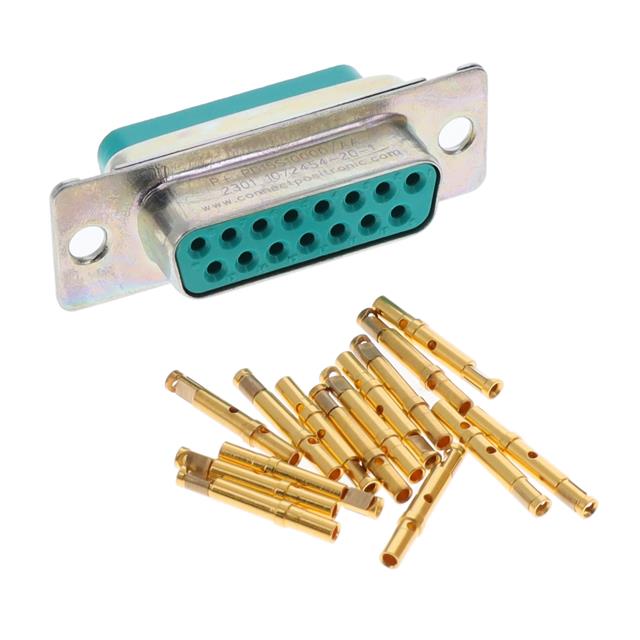

D SUB CONNECTOR, STANDARD, RECEPTACLE, RD SERIES, 15 CONTACTS, DA, CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsD-Sub Miniature Connectors Catalog

RD15S10000/AA

Active

Amphenol Positronic

D SUB CONNECTOR, STANDARD, RECEPTACLE, RD SERIES, 15 CONTACTS, DA, CRIMP

Deep-Dive with AI

DocumentsD-Sub Miniature Connectors Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RD15S10000/AA

Color	Green
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Material, Finish	Clear Chromate Plated Zinc, Steel
Shell Size, Connector Layout	2
Termination	Crimp
Voltage Rating	300 VDC
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG

RD15S Series

Part	Contact Finish Thickness	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Ingress Protection	Shell Material, Finish	Connector Style	Termination	Mounting Type	Voltage Rating	Current Rating (Amps)	Dielectric Material	Contact Finish	Connector Type	Flange Feature	Material Flammability Rating	Shell Size, Connector Layout	Color	Number of Rows	Number of Positions	Primary Material	Features	Flange Feature [custom]	Flange Feature [custom]
Amphenol Positronic RD15S10000/AA	Flash	Signal	-55 °C	125 °C	20 AWG	24 AWG	Copper Alloy	IP65 IP67	Clear Chromate Plated Zinc Steel	D-Sub	Crimp	Free Hanging (In-Line)	300 VDC	7.5 A	Diallyl Phthalate (DAP) Glass Filled	Gold	Receptacle Female Sockets	Housing/Shell (Unthreaded)	UL94 V-0	2	Green	2	15
Amphenol Positronic RD15S10000/AA	Flash	Signal	-55 °C	125 °C	20 AWG	24 AWG	Copper Alloy	IP65 IP67	Clear Chromate Plated Zinc Steel	D-Sub	Crimp	Free Hanging (In-Line)	300 VDC	7.5 A	Diallyl Phthalate (DAP) Glass Filled	Gold	Receptacle Female Sockets	Housing/Shell (Unthreaded)	UL94 V-0	2	Green	2	15	Metal
Amphenol Positronic RD15S10JVL0	Flash	Signal	-55 °C	125 °C	20 AWG	24 AWG	Copper Alloy	IP65 IP67	Clear Chromate Plated Zinc Steel	D-Sub	Crimp	Free Hanging (In-Line)	300 VDC	7.5 A	Diallyl Phthalate (DAP) Glass Filled	Gold	Receptacle Female Sockets	Housing/Shell (Unthreaded)	UL94 V-0	2	Green	2	15		Backshell Cable Clamp Mounting Hardware
Amphenol Positronic RD15S100E30/AA	Flash	Signal	-55 °C	125 °C	20 AWG	24 AWG	Copper Alloy	IP65 IP67	Clear Chromate Plated Zinc Steel	D-Sub	Crimp	Free Hanging (In-Line)	300 VDC	7.5 A	Diallyl Phthalate (DAP) Glass Filled	Gold	Receptacle Female Sockets		UL94 V-0	2	Green	2	15			Cable Side	Male Jackscrew (4-40)
