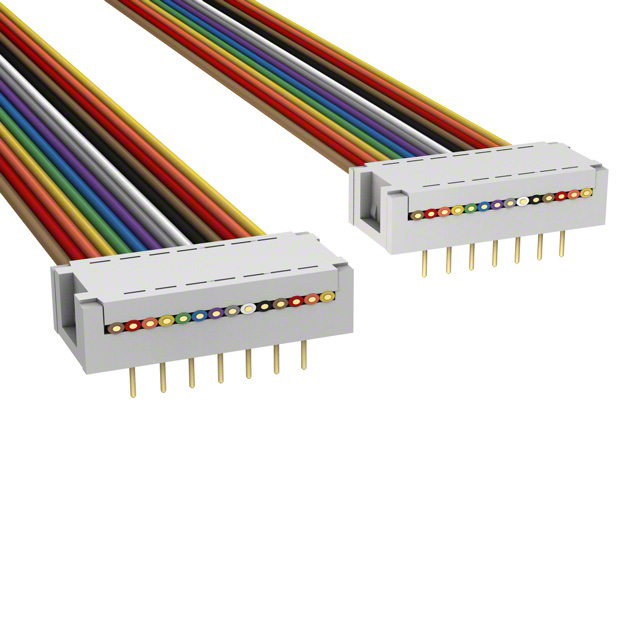

H8PPS-1436M

Active

Assmann WSW Components

DIP CABLE - HDP14S/AE14M/HDP14S

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDP14S/AE14M/HDP14S

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CABLE - HDP14S/AE14G/HDP14S

Part	Number of Rows	Contact Finish	Number of Positions	Pitch - Connector	Pitch - Connector	Shielding	Cable Termination	Length [x]	Length [x]	Usage	Connector Type	Pitch - Cable	Pitch - Cable	Color	Length	Length	Length
Assmann WSW Components H8PPS-1418G	2	Tin	14	0.1 in	2.54 mm	Unshielded	IDC	457.2 mm	1.5 ft	Board In, Socket (0.3")	DIP to DIP, Reversed	0.05 "	1.27 mm
Assmann WSW Components H8PPS-1436M	2	Tin	14	0.1 in	2.54 mm	Unshielded	IDC	914.4 mm	3 ft	Board In, Socket (0.3")	DIP to DIP, Reversed	0.05 "	1.27 mm	Multiple, Ribbon
Assmann WSW Components H8PPS-1406G	2	Tin	14	0.1 in	2.54 mm	Unshielded	IDC			Board In, Socket (0.3")	DIP to DIP, Reversed	0.05 "	1.27 mm		152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
