845-120-524-804

Active

EDAC Inc.

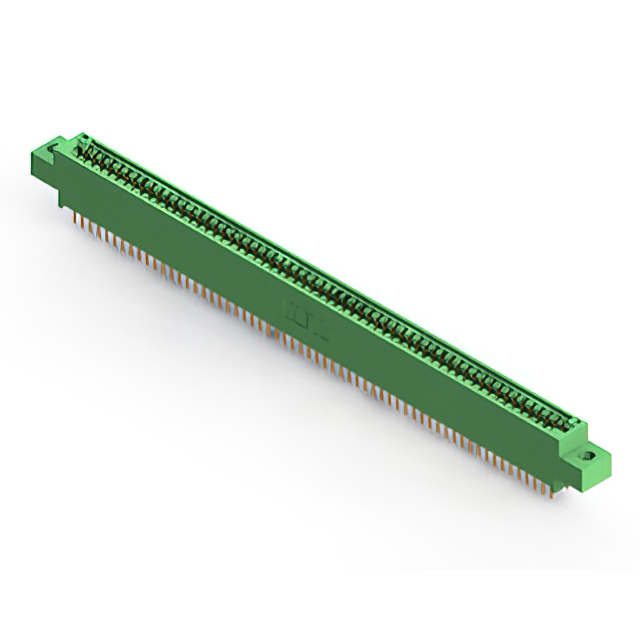

CARD EDGE CONNECTOR, 120 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-120-524-804

Active

EDAC Inc.

CARD EDGE CONNECTOR, 120 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-120-524-804

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	120
Number of Positions/Bay/Row [custom]	60
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-120 Series

...

Part	Material - Insulation	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Number of Positions/Bay/Row [custom]	Color	Contact Material	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Card Type	Contact Type	Number of Positions	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Flange Feature	Number of Rows	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 845-120-556-508	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	60	Green	Copper Alloy	Board Edge Straddle Mount	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Solder	4-40 Threaded Insert Top Mount Opening	2	2.54 mm	0.1 in
EDAC Inc. 845-120-544-807	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in		60	Green	Copper Alloy	Through Hole	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Wire Wrap	M3 Threaded Insert Top Mount Opening	2	2.54 mm	0.1 in
EDAC Inc. 845-120-541-504	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in		60	Green	Copper Alloy	Through Hole	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Wire Wrap	Top Mount Opening Unthreaded	2	2.54 mm	0.1 in	0.156 in	3.96 mm
EDAC Inc. 845-120-525-503	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in		60	Green	Copper Alloy	Through Hole	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Solder	Floating Bobbin Top Mount Opening	2	2.54 mm	0.1 in	0.116 in	2.95 mm
EDAC Inc. 845-120-524-804	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in		60	Green	Copper Alloy	Through Hole	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Solder	Top Mount Opening Unthreaded	2	2.54 mm	0.1 in	0.156 in	3.96 mm
EDAC Inc. 845-120-560-803	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	60	Green	Copper Alloy	Board Edge Straddle Mount	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Solder	Floating Bobbin Top Mount Opening	2	2.54 mm	0.1 in	0.116 in	2.95 mm
EDAC Inc. 845-120-524-207	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in		60	Green	Copper Alloy	Through Hole	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Solder	Flush Mount M3 Threaded Insert Top Opening	2	2.54 mm	0.1 in
EDAC Inc. 845-120-558-507	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in		60	Green	Copper Alloy	Through Hole Right Angle	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Solder	M3 Threaded Insert Top Mount Opening	2	2.54 mm	0.1 in
EDAC Inc. 845-120-541-802	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in		60	Green	Copper Alloy	Through Hole	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Wire Wrap		2	2.54 mm	0.1 in			3.25 mm	0.128 in
EDAC Inc. 845-120-525-504	Diallyl Phthalate (DAP)	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in		60	Green	Copper Alloy	Through Hole	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Cantilever	120	Female	125 °C	-40 °C	Solder	Top Mount Opening Unthreaded	2	2.54 mm	0.1 in	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 95.81
Newark	Each	1	$ 110.59
		100	$ 66.95
		250	$ 57.68
		500	$ 51.95
		1000	$ 39.00

Description

General part information

845-120 Series

120 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
