STM32L422TBY6TR
ActiveARM MCU, STM32 FAMILY STM32L4 SERIES MICROCONTROLLERS, ARM CORTEX-M4F, 32 BIT, 80 MHZ, 128 KB
Deep-Dive with AI
Search across all available documentation for this part.
STM32L422TBY6TR
ActiveARM MCU, STM32 FAMILY STM32L4 SERIES MICROCONTROLLERS, ARM CORTEX-M4F, 32 BIT, 80 MHZ, 128 KB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STM32L422TBY6TR |
|---|---|
| Connectivity | Quad SPI, USB, LINbus, I2C, Infrared, IrDA, SPI, UART/USART |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Mounting Type | Surface Mount |
| Number of I/O | 30 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

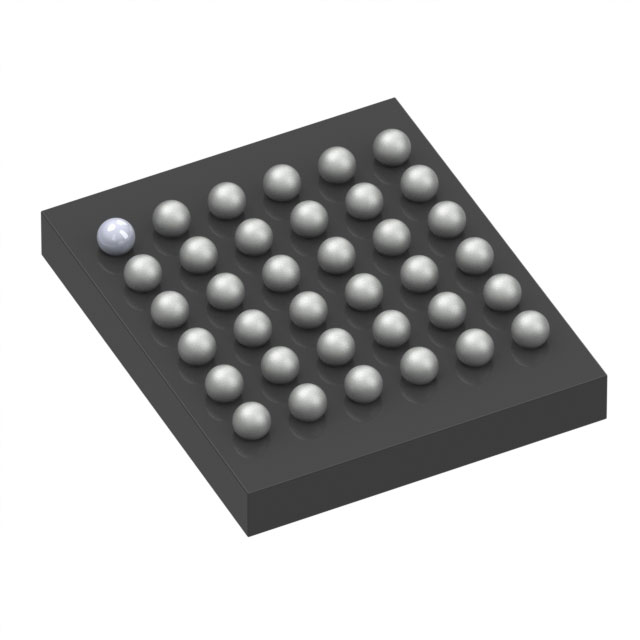

| Package / Case | 36-UFBGA, WLCSP |
| Peripherals | Brown-out Detect/Reset, WDT, PWM, DMA |
| Program Memory Size | 128 KB |
| Program Memory Type | FLASH |
| RAM Size | 40 K |
| Speed | 80 MHz |
| Supplier Device Package | 36-WLCSP |
| Supplier Device Package [x] | 2.58 |
| Supplier Device Package [y] | 3.07 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.69 | |
| 10 | $ 2.78 | |||
| 25 | $ 2.55 | |||
| 100 | $ 2.31 | |||
| 250 | $ 2.19 | |||
| 500 | $ 2.11 | |||
| 1000 | $ 2.06 | |||
| 2500 | $ 1.99 | |||
| Digi-Reel® | 1 | $ 3.69 | ||
| 10 | $ 2.78 | |||
| 25 | $ 2.55 | |||
| 100 | $ 2.31 | |||
| 250 | $ 2.19 | |||
| 500 | $ 2.11 | |||
| 1000 | $ 2.06 | |||
| 2500 | $ 1.99 | |||
| Tape & Reel (TR) | 5000 | $ 1.96 | ||
Description
General part information
STM32L422TB Series
The STM32L422xx devices are ultra-low-power microcontrollers based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision that supports all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32L422xx devices embed high-speed memories (flash memory up to 128 Kbyte, 40 Kbyte of SRAM), a Quad SPI flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
The STM32L422xx devices embed several protection mechanisms for embedded flash memory and SRAM: readout protection, write protection, proprietary code readout protection and Firewall.
