DCU-08BFEA-LL7001

Active

Amphenol LTW

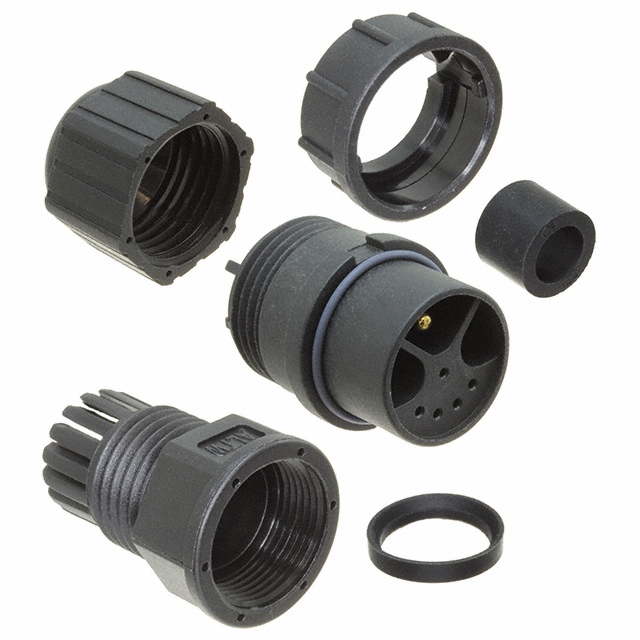

CERES, LARGE SIZE, PLASTIC, 20A+2A, 08 PINS, FEMALE CONNECTOR, MALE (POWER) + FEMALE (SIGNAL) CONTACT, STRAIGHT, 2 POINTS LOCK,

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A+2A, 08 PINS, FEMALE CONNECTOR, MALE (POWER) + FEMALE (SIGNAL) CONTACT, STRAIGHT, 2 POINTS LOCK,

Technical Specifications

Parameters and characteristics for this part

Specification	DCU-08BFEA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.374 in, 0.425 in
Cable Opening [custom]	10.8 mm
Cable Opening [custom]	9.5 mm
Color	Black
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A, 2 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Positions [custom]	5
Number of Positions [custom]	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded

Part	Shell Size - Insert	Number of Positions [custom]	Number of Positions	Number of Positions [custom]	Backshell Material, Plating	Features	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Mounting Type	Primary Material	Ingress Protection	Connector Type	Orientation	Insert Material	Shell Material	Fastening Type	Color	Shielding	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW DCU-08BFEA-LL7001	D	5	8	3	Nylon Polyamide (PA)	Backshell Coupling Nut	0.374 in 0.425 in	10.8 mm	9.5 mm	Free Hanging (In-Line)	Plastic	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Keyed	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	Bayonet Lock	Black	Unshielded	2 A 20 A	Copper Alloy	Gold	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (5 + 3 Power) Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup
