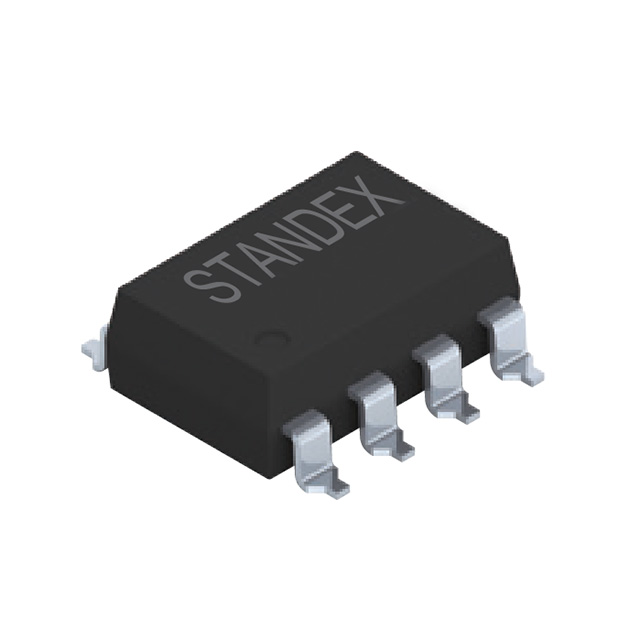

SMP-2A30-8ST

Active

Standex-Meder Electronics

SSR RELAY SPST-NO 100MA 0-400V

Search across all available documentation for this part.

Active

Standex-Meder Electronics

SSR RELAY SPST-NO 100MA 0-400V

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 100MA 0-350V

Part	Circuit	On-State Resistance (Max) [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Load Current	Mounting Type	Supplier Device Package	Voltage - Input	Termination Style	Output Type	Package / Case	Package / Case [custom]	Package / Case [x]	Package / Case	Package / Case
Standex-Meder Electronics SMP-2A31-8PT	SPST-NO (1 Form A) x 2	24 Ohm	350 V	0 V	100 mA	Surface Mount	8-SOP	1.17 VDC	Gull Wing	AC, DC	8-SOP	4.4 mm	0.173 in
Standex-Meder Electronics SMP-2A30-8ST	SPST-NO (1 Form A) x 2	24 Ohm			100 mA	Surface Mount	8-SMD	1.17 VDC	Gull Wing	AC, DC	8-SMD			7.62 mm	0.3 in
Standex-Meder Electronics SMP-2A30-8DT	SPST-NO (1 Form A) x 2	24 Ohm			100 mA	Through Hole	8-DIP	1.17 VDC	PC Pin	AC, DC	8-DIP			7.62 mm	0.3 in
Standex-Meder Electronics SMP-2A30-8PT	SPST-NO (1 Form A) x 2	24 Ohm			85 mA	Surface Mount	8-SOP	1.17 VDC	Gull Wing	AC, DC	8-SOP	4.4 mm	0.173 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
