704.030.2

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.030.2	704.030 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Pushbutton, Round	Pushbutton, Round
Illumination	-	Illuminated - Yellow, Illuminated - Green, Illuminated, Illuminated - Blue
Panel Cutout Dimensions	22.3 mm	22.3 mm
Requires	Illumination Source, Contact Block(s)	Illumination Source, Contact Block(s)
Type	Momentary	Momentary

(704.030.4X) ILLUMINATED PUSHBUTTON-ACTUATOR GREY/YELLOW MOM D29 SCH

Part	Illumination	Type	Requires	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Panel Cutout Dimensions
EAO 704.030.4	Illuminated - Yellow	Momentary	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	22.3 mm
EAO 704.030.5	Illuminated - Green	Momentary	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	22.3 mm
EAO 704.030.2		Momentary	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	22.3 mm
EAO 704.030.7	Illuminated	Momentary	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	22.3 mm
EAO 704.030.6	Illuminated - Blue	Momentary	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	22.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

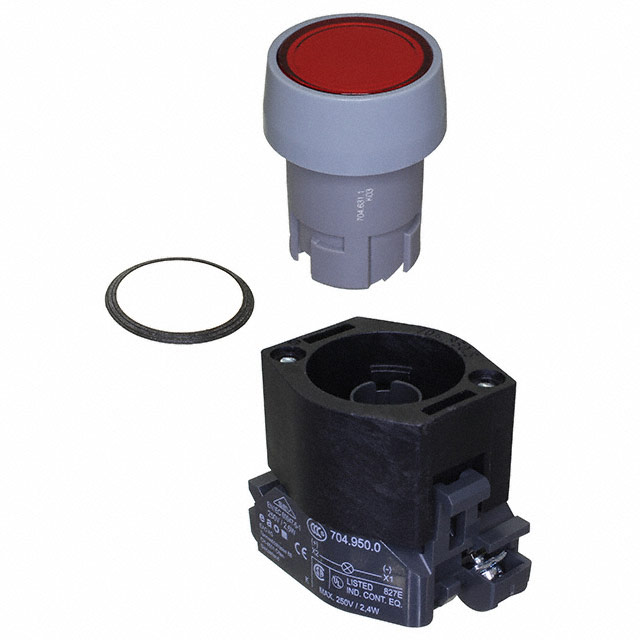

Configurable Switch Body Pushbutton, Round Illuminated - Red
