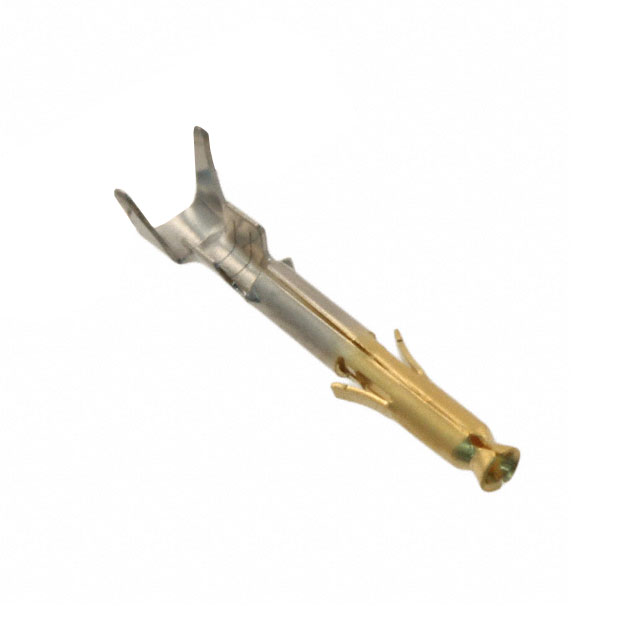

MINI-1822SG
Connectors, Interconnects

1-770988-0

Active
TE Connectivity Raychem Cable Protection

PIN & SOCKET CONNECTORS SOCKET CON 22-18AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN3D Product Image EN+2
MINI-1822SG
Connectors, Interconnects

1-770988-0

Active
TE Connectivity Raychem Cable Protection

PIN & SOCKET CONNECTORS SOCKET CON 22-18AWG GOLD

Deep-Dive with AI

DocumentsTechnical Data Sheet EN3D Product Image EN+2

Technical Specifications

Parameters and characteristics for this part

Specification1-770988-0
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialBrass
Contact TerminationCrimp
Pin or SocketSocket
TypeStamped
Wire Gauge [Max]22 AWG
Wire Gauge [Min]17.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.70
10$ 0.68
25$ 0.67
50$ 0.65
100$ 0.54
250$ 0.51
500$ 0.48
1000$ 0.42
3000$ 0.40
NewarkEach 1$ 0.82
10$ 0.70
25$ 0.68
50$ 0.64
100$ 0.42
2500$ 0.39
5000$ 0.36
10000$ 0.34

Description

General part information

770988 Series

Socket Contact Gold Crimp 18-22 AWG Stamped
