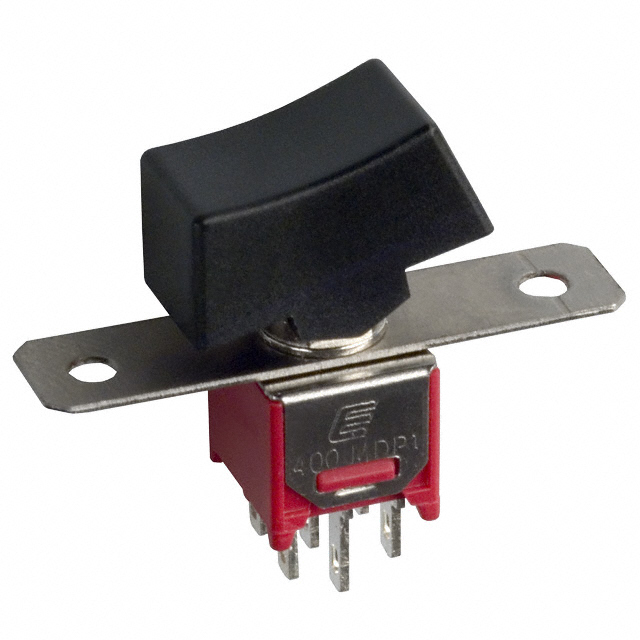

400MSP1R1BLKM1QE

Active

E-Switch

SWITCH ROCKER SPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

400MSP1R1BLKM1QE

Active

E-Switch

SWITCH ROCKER SPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	400MSP1R1BLKM1QE

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	cULus
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	15.75 mm
Panel Cutout Dimensions [y]	8.89 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

400MSP1 Series

Part	Color - Actuator/Cap	Voltage Rating - DC	Switch Function	Mechanical Life	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Actuator Type	Electrical Life	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Features	Current Rating (Amps)	Termination Style	Mounting Type
E-Switch 400MSP1R6BLKM1QE	Black	28 V	On-On	30000 Steps	SPDT	7.11 mm	15.75 mm	cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	120 V	Epoxy Sealed Terminals	3 A	Solder Lug	Flange Panel Mount
E-Switch 400MSP1R6BLKVS2RE	Black	20 V	On-On	30000 Steps	SPDT	7.11 mm	15.75 mm	cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	20 V	Epoxy Sealed Terminals	0.4 VA	PC Pin	Through Hole
E-Switch 400MSP1R1M6QE	Black	28 V	On-On	30000 Steps	SPDT	8.89 mm	15.75 mm	cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	120 V	Epoxy Sealed Terminals	3 A	PC Pin	Through Hole Right Angle
E-Switch 400MSP1R6BLKVS2QE	Black	28 V	On-On	30000 Steps	SPDT	7.11 mm	15.75 mm	cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	120 V	Epoxy Sealed Terminals	3 A	PC Pin	Through Hole
E-Switch 400MSP1R6BLKM7QE	Black	28 V	On-On	30000 Steps	SPDT	7.11 mm	15.75 mm	cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	120 V	Epoxy Sealed Terminals	3 A	PC Pin	Right Angle Through Hole Vertical
E-Switch 400MSP1R1BLKM1QE	Black	28 V	On-On	30000 Steps	SPDT	8.89 mm	15.75 mm	cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	120 V	Epoxy Sealed Terminals	3 A	Solder Lug	Flange Panel Mount
E-Switch 400MSP1R6BLKM61QE	Black	28 V	On-On	30000 Steps	SPDT			cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	120 V	Epoxy Sealed Terminals	3 A	PC Pin	Through Hole Right Angle
E-Switch 400MSP1R6WHTM6RE	White	20 V	On-On	30000 Steps	SPDT			cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	20 V	Epoxy Sealed Terminals	0.4 VA	PC Pin	Through Hole Right Angle
E-Switch 400MSP1R1BLKM1RE	Black	20 V	On-On	30000 Steps	SPDT	8.89 mm	15.75 mm	cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	20 V	Epoxy Sealed Terminals	0.4 VA	Solder Lug	Flange Panel Mount
E-Switch 400MSP1R1BLKM6QE	Black	28 V	On-On	30000 Steps	SPDT	8.89 mm	15.75 mm	cULus	Concave (Curved)	30000 Cycles	No Marking	-30 ░C	85 °C	120 V	Epoxy Sealed Terminals	3 A	PC Pin	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 2.60

Description

General part information

400MSP1 Series

Rocker Switch SPDT 3A (AC/DC) 120 V Panel Mount, Flange

Documents

Technical documentation and resources

No documents available
