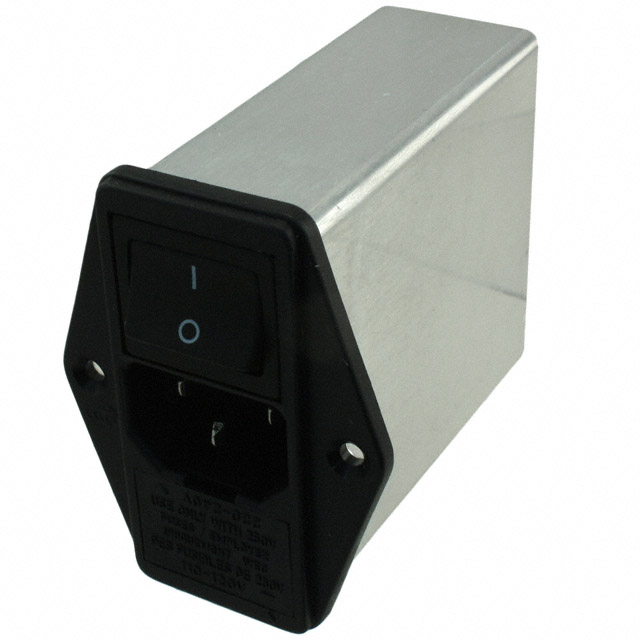

10EK3

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10EK3	10EK Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Voltage Selector	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm	29 mm
Panel Cutout Dimensions [y]	60.2 mm	60.2 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Mounting Type	Accomodates a Fuse	Fuse Holder, Drawer	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type	Approval Agency	Termination	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Features	Connector Style	Current Rating - Appliance Inlet	Switch Features
Delta Electronics 10EK3M	Flange, Panel Mount		Fuse Holder, Twin Fused	Filtered (EMI, RFI) - Commercial, Medical	29 mm	60.2 mm	Receptacle, Male Blades - Module	CSA, UL, VDE	Quick Connect	115 VAC	250 VAC	Voltage Selector	IEC 320-C14	10 A	Switch On-Off
Delta Electronics 10EK3	Flange, Panel Mount		Fuse Holder, Twin Fused	Filtered (EMI, RFI) - Commercial	29 mm	60.2 mm	Receptacle, Male Blades - Module	CSA, UL, VDE	Quick Connect	115 VAC	250 VAC	Voltage Selector	IEC 320-C14	10 A	Switch On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
