Q-2R0180008072I

Active

Amphenol Custom Cable

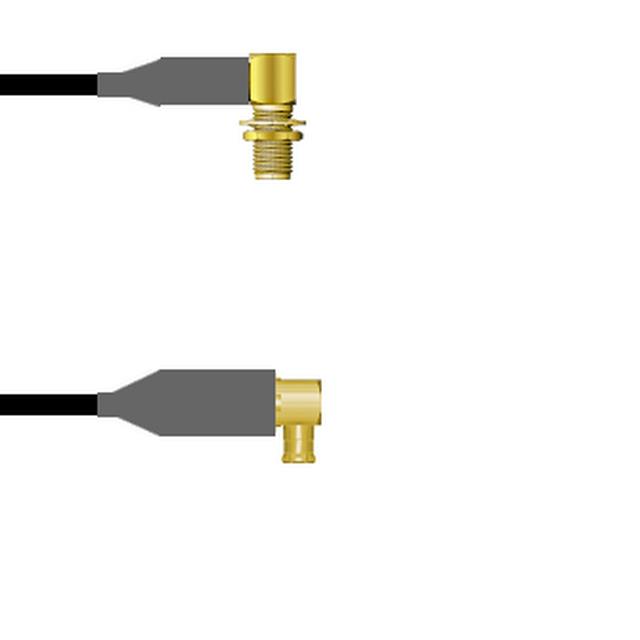

COAX CABLE SMA TO MCX 6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO MCX 6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2R0180008072I

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMA to MCX

Part	Features	2nd Connector Mounting Type	Length	Length	Length	2nd Contact Gender	Cable Impedance	1st Contact Gender	Connector Impedance	Cable Type	Style	1st Connector	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector Mounting Feature	Color	Overall Impedance	2nd Connector
Amphenol Custom Cable Q-2R0180008072I	Shielded	Free Hanging (In-Line)	6 ft	72 in	1.8 m	Male	50 Ohms	Female	50 Ohms	RG-58	SMA to MCX	Right Angle SMA Jack	1 GHz	Panel Mount	Bulkhead - Front Side Nut	Black	50 Ohms	MCX Plug Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to MCX RG-58 72.0" (1.8m) 6.0'
