DCD-12BMEA-LL7001
ActiveAmphenol LTW

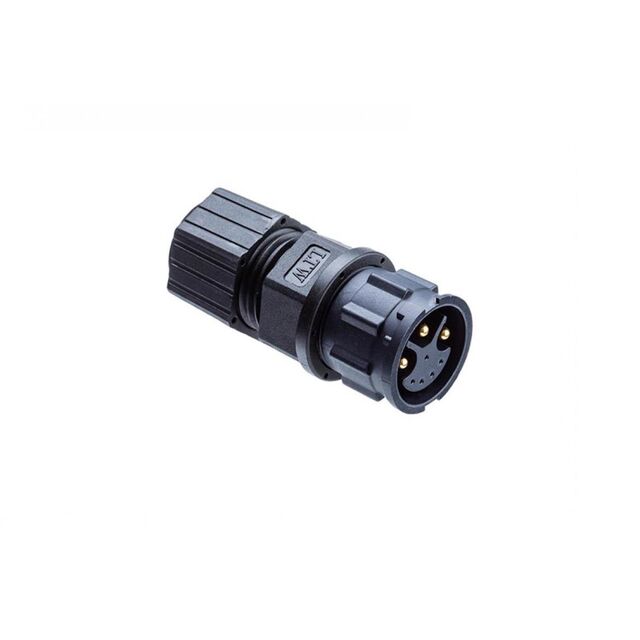

CERES, LARGE SIZE, PLASTIC, 20A+5A, 12 PINS, MALE CONNECTOR, MALE (POWER) + FEMALE (SIGNAL) CONTACT, STRAIGHT, 2 POINTS LOCK, SO
Deep-Dive with AI
Search across all available documentation for this part.
DCD-12BMEA-LL7001
ActiveAmphenol LTW
CERES, LARGE SIZE, PLASTIC, 20A+5A, 12 PINS, MALE CONNECTOR, MALE (POWER) + FEMALE (SIGNAL) CONTACT, STRAIGHT, 2 POINTS LOCK, SO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCD-12BMEA-LL7001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 12.4 mm |
| Cable Opening [Max] [custom] | 0.488 in |
| Cable Opening [Min] [custom] | 10 mm |
| Cable Opening [Min] [custom] | 0.394 in |
| Color | Black |
| Connector Type | Female Sockets, Male Pins, Receptacle |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 20 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | D |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DCD-12BMEA Series
12 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
