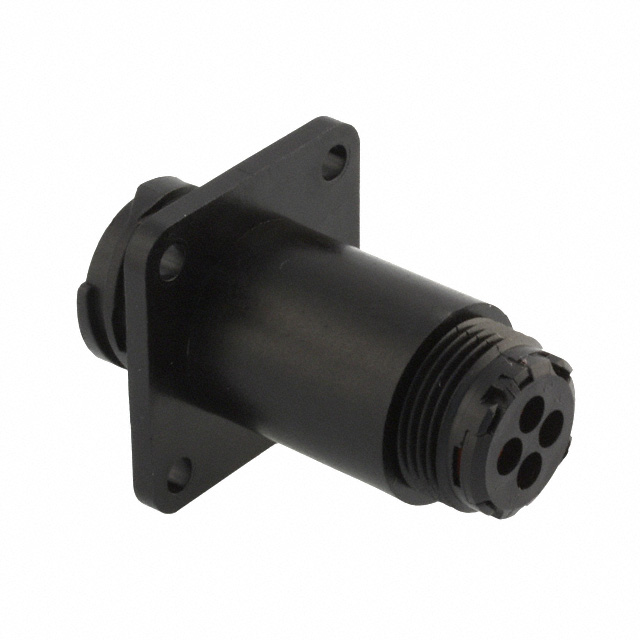

CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796095-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 796095-2 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Size - Insert | 11-4 |
| Shielding | Unshielded |
| Type | For Male Pins |
796095 Series
CONN RCPT HSNG MALE 4POS PNL MNT
| Part | Type | Orientation | Insert Material | Number of Positions | Note | Mounting Feature | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Connector Type | Shell Size - Insert | Contact Type | Contact Shape | Contact Size | Ingress Protection | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796095-2 | For Male Pins | Keyed | Thermoplastic | 4 | Contacts Not Included | Flange | Unshielded | 105 ░C | -55 °C | UL94 V-0 | Receptacle Housing | 11-4 | Crimp | Circular | 16 | IP67 - Dust Tight, Waterproof | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.13 | |
| 10 | $ 16.78 | |||
| 25 | $ 16.33 | |||
| 50 | $ 15.53 | |||
| 100 | $ 14.01 | |||
| 250 | $ 13.92 | |||
| 500 | $ 12.14 | |||
Description
General part information
796095 Series
4 Position Circular Connector Receptacle Housing Panel Mount
