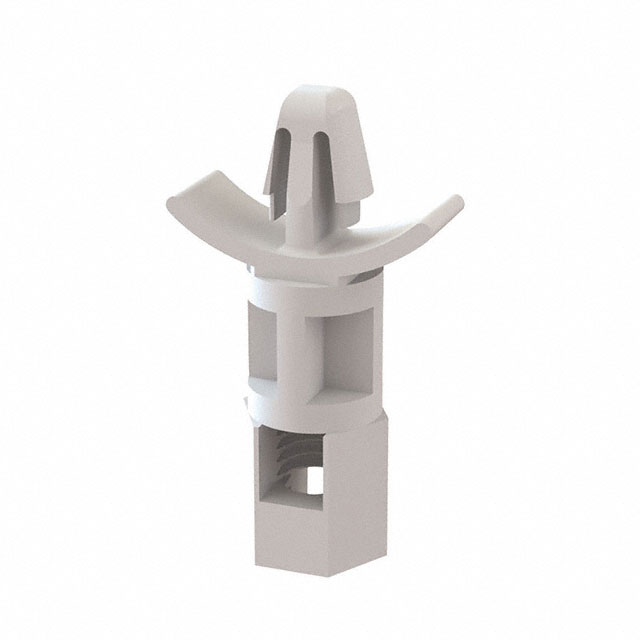

LCCBS-TF-14-19
ActiveEssentra Access Solutions
CBS LOCK CHASSIS TH/FEM FR .922"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCCBS-TF-14-19
ActiveEssentra Access Solutions
CBS LOCK CHASSIS TH/FEM FR .922"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCBS-TF-14-19 |
|---|---|
| Between Board Height | 23.42 mm |
| Between Board Height | 0.922 in |
| Features | 6-32 Thread, Winged |
| Holding Type | Snap Lock |
| Length - Overall [x] | 29 mm |
| Length - Overall [x] | 1.142 " |
| Material | Nylon |
| Mounting Type | Screw Mount |
| Support Hole Diameter [diameter] | 0.1875 " |
| Support Hole Diameter [diameter] | 4.75 mm |
| Support Hole Diameter [diameter] | 0.187 " |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.19 | |
| 5 | $ 0.16 | |||
| 10 | $ 0.13 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
Description
General part information
LCCBS Series
Board Support Snap Lock / Screw Mount Nylon 0.922" (23.42mm)
