14010850C0ME

Active

METZ CONNECT USA Inc.

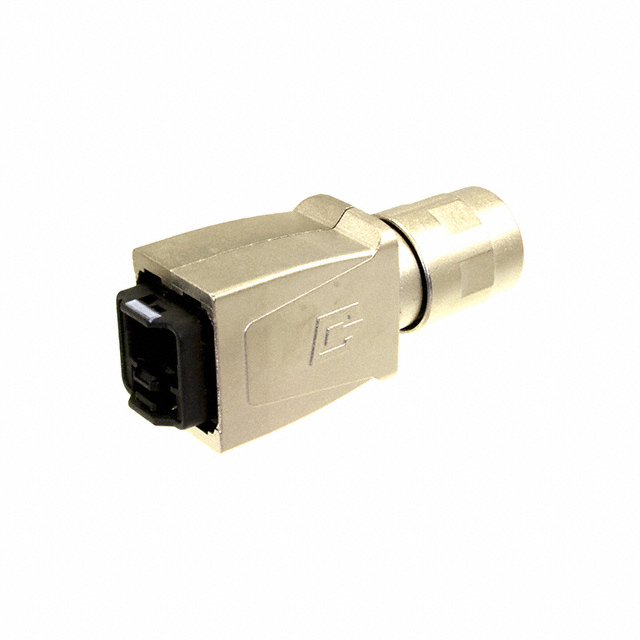

INDUSTRY IP67 V14 PLUG HOUSING

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

INDUSTRY IP67 V14 PLUG HOUSING

Technical Specifications

Parameters and characteristics for this part

Specification	14010850C0ME

Color	Silver
Connector Type	Housing for Prewired RJ45 Cordset
Fastening Type	Push-Pull
Housing Material	Zinc, Die Cast
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Note	Plug Not Provided
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded

INDUSTRY IP67 V14 PLUG HOUSING

Part	Mounting Type	Note	Shielding	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Housing Material	Connector Type	Ingress Protection
METZ CONNECT USA Inc. 14010850C0ME	Free Hanging (In-Line)	Plug Not Provided	Unshielded	Push-Pull	-40 °C	70 °C	Silver	Zinc, Die Cast	Housing for Prewired RJ45 Cordset	IP67 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 25.69

General part information

Plug Housing Housing for Prewired RJ45 Cordset Modular Connector Push-Pull Silver

Technical documentation and resources
