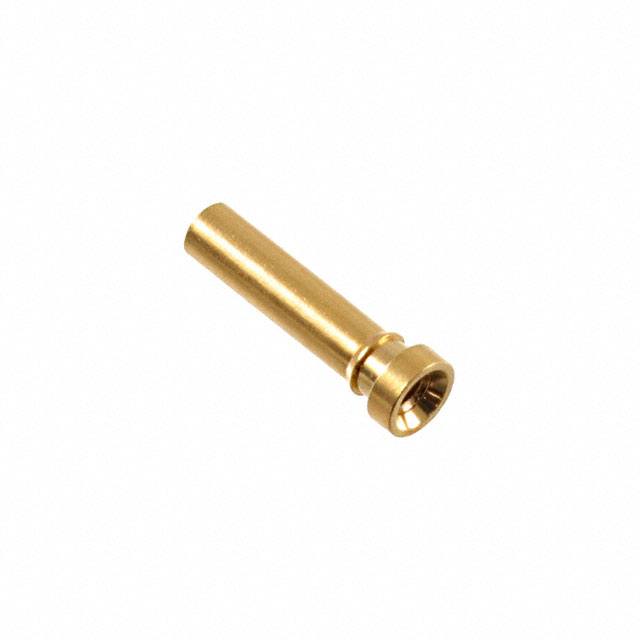

5650-0-19-15-16-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .022-.034" .295"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5650-0-19-15-16-27-10-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.16 mm
Flange Diameter [diameter]	0.085 in
Length - Overall	7.49 mm
Length - Overall [x]	0.295 in
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	7.49 mm
Socket Depth [z]	0.295 in
Tail Type	No Tail
Termination	Press-Fit

5650-0 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Length - Overall [x]	Length - Overall	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Socket Depth [z]
Mill-Max Manufacturing Corp. 5650-0-19-15-16-14-10-0	2.16 mm	0.085 in	Beryllium Copper	-55 °C	125 °C	Gold	1.7 mm	0.067 "	10 Áin	0.25 Ám	0.64 mm	0.025 in	0.295 in	7.49 mm	0.125 in	3.18 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	0.79 mm	0.031 in	Press-Fit
Mill-Max Manufacturing Corp. 5650-0-19-80-16-14-10-0	2.16 mm	0.085 in	Beryllium Copper	-55 °C	125 °C	Gold	1.7 mm	0.067 "	10 Áin	0.25 Ám	0.64 mm	0.025 in	0.295 in	7.49 mm	0.125 in	3.18 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	0.79 mm	0.031 in	Press-Fit
Mill-Max Manufacturing Corp. 5650-0-19-15-16-27-10-0	2.16 mm	0.085 in	Beryllium Copper	-55 °C	125 °C	Gold	1.7 mm	0.067 "	30 Áin	0.76 Ám	0.64 mm	0.025 in	0.295 in	7.49 mm		7.49 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	1.3 mm	0.051 in	Press-Fit	0.295 in
Mill-Max Manufacturing Corp. 5650-0-19-80-16-80-10-0	2.16 mm	0.085 in	Beryllium Copper	-55 °C	125 °C	Tin	1.7 mm	0.067 "	200 Áin	5.08 Ám	0.64 mm	0.025 in	0.295 in	7.49 mm	0.125 in	3.18 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	0.79 mm	0.031 in	Press-Fit
