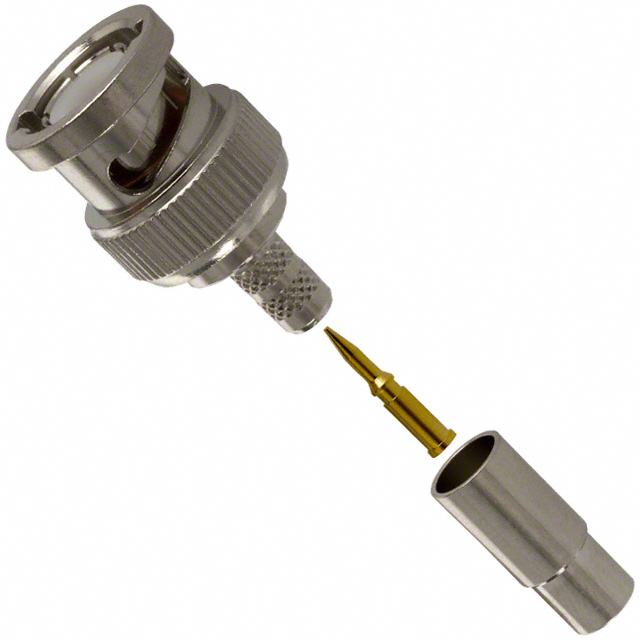

36650-3RFX

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	36650-3RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58 Plenum, Belden 88240, 89907
Cable Group	122
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Material	Fastening Type	Cable Group	Cable Group	Contact Termination	Shield Termination	Connector Type	Frequency - Max [Max]	Number of Ports	Includes	Housing Color	Center Contact Material	Mating Cycles	Impedance	Mounting Type	Body Finish	Voltage Rating	Insertion Loss	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material
Amphenol RF 36650-3RFX	Brass	Bayonet Lock	89907 Belden 88240 RG-58 Plenum	122	Crimp	Crimp	Male Pin Plug	4 GHz	1	1 Connector 1 Contact 1 Ferrule	Silver	Brass	500	50 Ohms	Free Hanging (In-Line)	Nickel	500 V	0.2 dB	BNC	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
