DEB-B095MB1S

Active

Knowles Dielectric Labs

EVAL BOARD FOR B095MB1S

Search across all available documentation for this part.

Active

Knowles Dielectric Labs

EVAL BOARD FOR B095MB1S

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DEB-B095MB1S	B095MB Series

Bandwidth	-	1.1 - 100 GHz
Filter Type	-	Band Pass
For Use With/Related Products	B095MB1S	B095MB1S
Frequency	9.5 GHz	9.5 GHz
Height (Max)	-	2.62 mm
Height (Max)	-	0.103 in
Insertion Loss	-	2 dB
Mounting Type	-	Surface Mount
Package / Case	-	2-SMD, No Lead, 3-SMD, No Lead
Size / Dimension	-	0.4 in
Size / Dimension	-	3.81 mm
Size / Dimension	-	0.15 "
Size / Dimension	-	10.16 mm
Supplied Contents	Board(s)	Board(s)
Type	Filter	Filter

EVAL BOARD FOR B095MB1S

Part	For Use With/Related Products	Supplied Contents	Type	Frequency	Insertion Loss	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Filter Type	Bandwidth	Mounting Type
Knowles Dielectric Labs DEB-B095MB1S	B095MB1S	Board(s)	Filter	9.5 GHz
Knowles Dielectric Labs B095MB1S				9.5 GHz	2 dB	2-SMD, No Lead	2.62 mm	0.103 in	0.4 in	3.81 mm	0.15 "	10.16 mm	Band Pass	1.1 GHz	Surface Mount
Knowles Dielectric Labs B095MB1S-T				9.5 GHz	2 dB	3-SMD, No Lead	2.62 mm	0.103 in	0.4 in	3.81 mm	0.15 "	10.16 mm	Band Pass	100 MHz	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

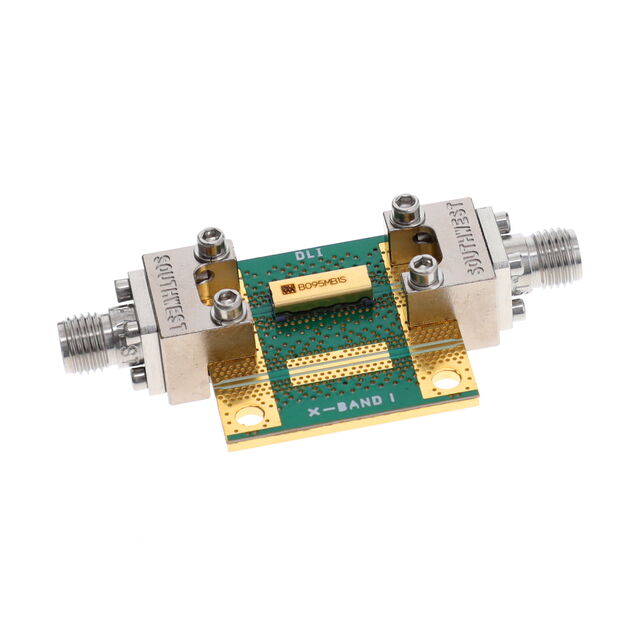

B095MB1S - Filter 9.5GHz Evaluation Board
