RV2H-2G-D12-C1D2

Active

IDEC Corporation

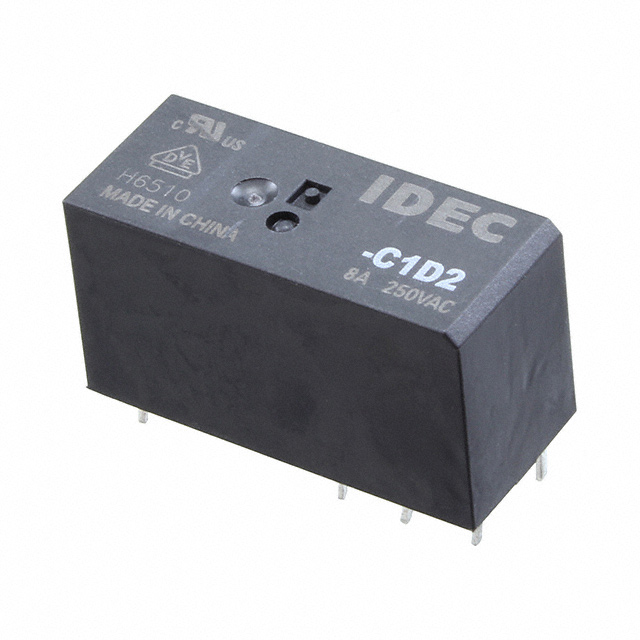

RELAY GEN PURPOSE DPDT 8A 12V

Deep-Dive with AI

Search across all available documentation for this part.

RV2H-2G-D12-C1D2

Active

IDEC Corporation

RELAY GEN PURPOSE DPDT 8A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.76

Description

General part information

RV2H-2G Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RV2H-2G-D12-C1D2	RV2H-2G Series

Approval Agency	cULus, CE	cULus, CE
Coil Current	32 mA	5.8 - 75 mA
Coil Resistance	375 Ohms	1.2 - 750 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	5 - 110 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A	6 - 8 A
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	9.6 VDC	4 - 88 VDC
Must Release Voltage	0.84 VDC	0.35 - 7.7 VDC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	55 °C	55 - 70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	15 ms	15 ms
Switching Voltage	250 VAC	250 VAC
Termination Style	PC Pin	PC Pin

RV2H-2G Series

LOW PROFILE 14MM 2C RELAY 9V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Operate Time	Mounting Type	Must Release Voltage	Coil Type	Release Time	Contact Form	Approval Agency	Contact Material	Termination Style	Contact Rating (Current)	Must Operate Voltage	Switching Voltage	Coil Voltage	Coil Resistance	Coil Current
IDEC Corporation RV2H-2G-D9	-40 °C	70 °C	General Purpose	15 ms	Through Hole	0.63 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	7.2 VDC	250 VAC	9 VDC
IDEC Corporation RV2H-2G-D24	-40 °C	70 °C	General Purpose	15 ms	Through Hole	1.68 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	19.2 VDC	250 VAC	24 VDC
IDEC Corporation RV2H-2G-D60	-40 °C	70 °C	General Purpose	15 ms	Through Hole		Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	48 VDC	250 VAC	60 VDC
IDEC Corporation RV2H-2G-D5	-40 °C	70 °C	General Purpose	15 ms	Through Hole	0.35 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	4 VDC	250 VAC	5 VDC
IDEC Corporation RV2H-2G-D24-C1D2	-40 °C	55 °C	General Purpose	15 ms	Through Hole	1.68 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	19.2 VDC	250 VAC	24 VDC	1.2 kOhms	20 mA
IDEC Corporation RV2H-2G-D12-C1D2	-40 °C	55 °C	General Purpose	15 ms	Through Hole	0.84 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	9.6 VDC	250 VAC	12 VDC	375 Ohms	32 mA
IDEC Corporation RV2H-2G-D5-C1D2	-40 °C	55 °C	General Purpose	15 ms	Through Hole	0.42 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	4 VDC	250 VAC	5 VDC	80 Ohms	75 mA
IDEC Corporation RV2H-2G-D110-C1D2	-40 °C	55 °C	General Purpose	15 ms	Through Hole	7.7 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	88 VDC	250 VAC	110 VDC	21.5 kOhms	5.8 mA
IDEC Corporation RV2H-2G-D18	-40 °C	70 °C	General Purpose	15 ms	Through Hole	1.26 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	14.4 VDC	250 VAC	18 VDC
IDEC Corporation RV2H-2G-D9-C1D2	-40 °C	55 °C	General Purpose	15 ms	Through Hole	0.63 VDC	Non Latching	15 ms	DPDT (2 Form C)	CE, cULus	Gold (Au), Silver Nickel (AgNi)	PC Pin	8 A	7.2 VDC	250 VAC	9 VDC	205 Ohms	44 mA
