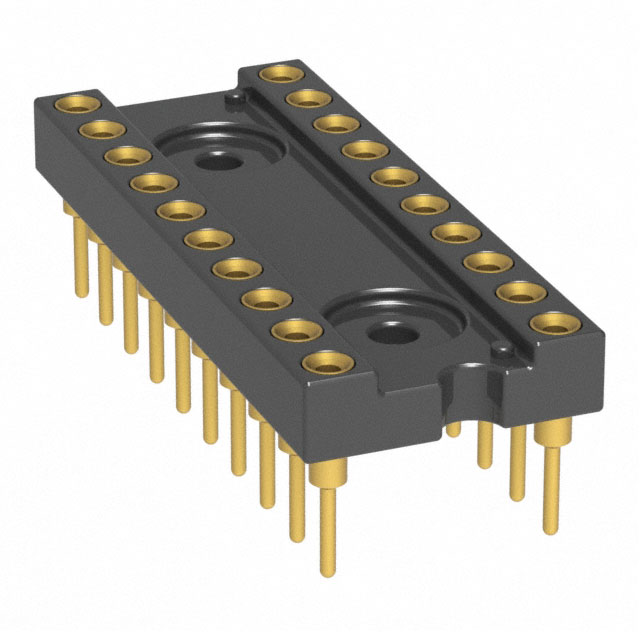

210-13-320-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	210-13-320-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

210-13 Series

Part	Features	Housing Material	Contact Finish - Post	Contact Finish - Mating	Number of Positions or Pins (Grid)	Termination Post Length	Termination Post Length	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Pitch - Post	Pitch - Post	Contact Material - Post	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Material Flammability Rating	Contact Resistance	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 210-13-308-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	8	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A
Mill-Max Manufacturing Corp. 210-13-324-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	24	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A
Mill-Max Manufacturing Corp. 210-13-322-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	22	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A	UL94 V-0	10 mOhm
Mill-Max Manufacturing Corp. 210-13-640-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	40	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.6 in	15.24 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A			20	2
Mill-Max Manufacturing Corp. 210-13-320-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	20	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A
Mill-Max Manufacturing Corp. 210-13-628-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	28	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.6 in	15.24 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A
Mill-Max Manufacturing Corp. 210-13-314-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	14	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A
Mill-Max Manufacturing Corp. 210-13-424-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	24	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.4 in	10.16 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A	UL94 V-0	10 mOhm
Mill-Max Manufacturing Corp. 210-13-964-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold	64	3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.9 in	22.86 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A
Mill-Max Manufacturing Corp. 210-13-310-41-001000	Closed Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Gold		3.18 mm	0.125 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Beryllium Copper	Solder	-55 °C	125 °C	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	Brass Alloy	Through Hole	10 çin	0.25 çm	3 A	UL94 V-0	10 mOhm			2 x 5	10
