87733-3

Active

TE Connectivity AMP Connectors

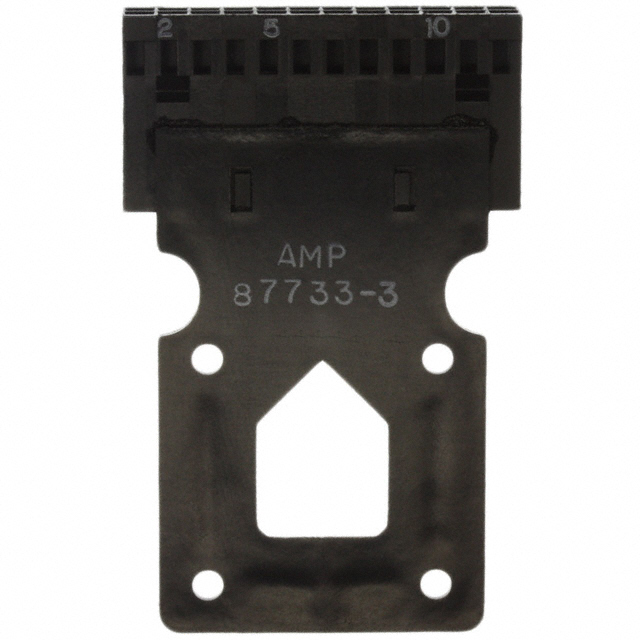

CONN RCPT HSG 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87733-3

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 24POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

87733 Series

24 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87733-3	87733 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male or Female	Male or Female
Fastening Type	Locking Ramp	Locking Ramp
Features	Strain Relief	Strain Relief
Insulation Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	24	20 - 60
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

87733 Series

CONN RCPT HSG 20POS 2.54MM

Part	Contact Type	Contact Termination	Row Spacing [x]	Row Spacing	Color	Features	Fastening Type	Number of Rows	Insulation Material	Note	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 87733-1	Male or Female	Crimp	0.1 in	2.54 mm	Black	Strain Relief	Locking Ramp	2	Thermoplastic	Contacts Not Included	2.54 mm	0.1 in	20	Receptacle	Free Hanging (In-Line)	-65 ░C	105 ░C
TE Connectivity AMP Connectors 87733-8	Male or Female	Crimp	0.1 in	2.54 mm	Black	Strain Relief	Locking Ramp	2	Thermoplastic	Contacts Not Included	2.54 mm	0.1 in	34	Receptacle	Free Hanging (In-Line)	-65 ░C	105 ░C
TE Connectivity AMP Connectors 1-87733-1	Male or Female	Crimp	0.1 in	2.54 mm	Black	Strain Relief	Locking Ramp	2		Contacts Not Included	2.54 mm	0.1 in	40	Receptacle	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-87733-4	Male or Female	Crimp	0.1 in	2.54 mm	Black	Strain Relief	Locking Ramp	2	Thermoplastic	Contacts Not Included	2.54 mm	0.1 in	50	Receptacle	Free Hanging (In-Line)	-65 ░C	105 ░C
TE Connectivity AMP Connectors 87733-3	Male or Female	Crimp	0.1 in	2.54 mm	Black	Strain Relief	Locking Ramp	2	Thermoplastic	Contacts Not Included	2.54 mm	0.1 in	24	Receptacle	Free Hanging (In-Line)	-65 ░C	105 ░C
TE Connectivity AMP Connectors 87733-4	Male or Female	Crimp	0.1 in	2.54 mm	Black	Strain Relief	Locking Ramp	2	Thermoplastic	Contacts Not Included	2.54 mm	0.1 in	26	Receptacle	Free Hanging (In-Line)	-65 ░C	105 ░C
TE Connectivity AMP Connectors 1-87733-7	Male or Female	Crimp	0.1 in	2.54 mm	Black	Strain Relief	Locking Ramp	2	Thermoplastic	Contacts Not Included	2.54 mm	0.1 in	60	Receptacle	Free Hanging (In-Line)	-65 ░C	105 ░C
