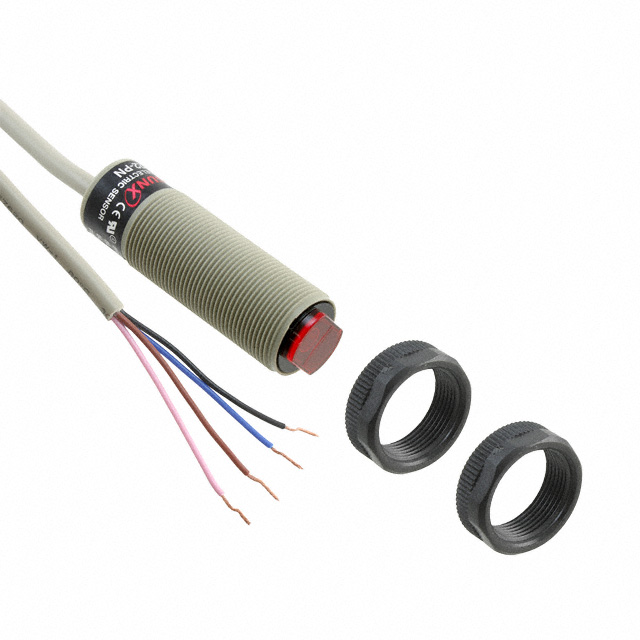

CY-22-PN

Obsolete

Panasonic Industrial Automation Sales

SENSOR THROUGH-BEAM 120MM PNP

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR THROUGH-BEAM 120MM PNP

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Cable Length	Cable Length	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Light Source	Output Configuration	Sensing Method	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method
Panasonic Industrial Automation Sales CY-22-J	IP67	78.74 in	2 m	30 VDC	10 VDC	2 ms	Infrared	NPN - Open Collector	Through-Beam	120 mm	4.724 in	55 °C	-25 °C	Cable
Panasonic Industrial Automation Sales CY-22-PN	IP67	78.74 in	2 m	30 VDC	10 VDC	2 ms	Infrared	PNP - Open Collector	Through-Beam	120 mm	4.724 in	55 °C	-25 °C	Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Through-Beam Optical Sensor 4.724" (120mm) PNP - Open Collector
